How to replace the A/C evaporator core in an automotive air conditioning system on Volkswagen Jetta?

The air conditioning system should be emptied at an automotive air conditioning facility or a dealership service department. The second step is to take out the heater and the air conditioner housing and put it down on a clean working surface. Go ahead to lift off the evaporator core fasteners, divide the housing and remove the evaporator core out of the housing carefully. The reinstatement is in the opposite sequence of the removal process, with due careful attention being paid to reactive insulating or sealing materials being placed in place around the evaporator core pipes, and around the core itself. Each time the air conditioning system is reinstalled, new O-rings must be employed on the fittings. Should you replace the evaporator core with a new one, then add new refrigerant oil to the new part, however, always remember that it has to match up with the type of refrigerant, R-134a or R1234yf, which might be used in the vehicle. Lastly, the shop where the initial discharge was done must evacuate the system, recharge, and leak test the system.

Genuine Volkswagen Jetta A/C Evaporator Core

A/C Evaporators

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 A/C Evaporator Cores found

View related parts
Volkswagen Jetta Evaporator Core Part Number: 1K1-820-103-H
$256.19 MSRP: $349.98
You Save: $93.79 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Evaporator
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2015-2016 Volkswagen Jetta | Base, GLI SE, GLI SEL, Hybrid SEL Premium, S, SE, SEL, SEL Premium, Sport, TDI S, TDI SE, TDI SEL | 4 Cyl 1.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Volkswagen Jetta Evaporator Core Part Number: 1K1-820-103-J
$283.64 MSRP: $387.48
You Save: $103.84 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Evaporator
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2016-2018 Volkswagen Jetta | GLI, GLI SE, GLI SEL, Hybrid SEL Premium, S, SE, SE Sport, SEL, SEL Premium, Sport, Wolfsburg Edition | 4 Cyl 1.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.4 L GAS, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
View related parts

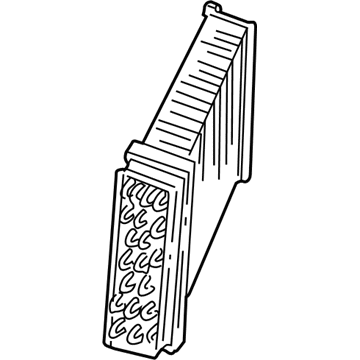

Volkswagen Jetta Evaporator Part Number: 1H1-820-103-C
$322.08 MSRP: $440.00
You Save: $117.92 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaces: 1H1-820-103-B
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1993-1999 Volkswagen Jetta | Celebration Edition, City, GL, GLS, GLX, GT, Jazz, K2, Limited Edition, TDI, Trek, Wolfsburg Edition | 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Jetta Evaporator Core Part Number: V04-018-002-A
$297.94 MSRP: $407.02
You Save: $109.08 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Repair Kit
- Replaced by: 5WB-816-103-A
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2024 Volkswagen Jetta | GLI 35th Anniversary Edition, GLI Autobahn, GLI S, R-Line, S, SE, SEL, SEL Premium, Sport | 4 Cyl 1.4 L GAS, 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts

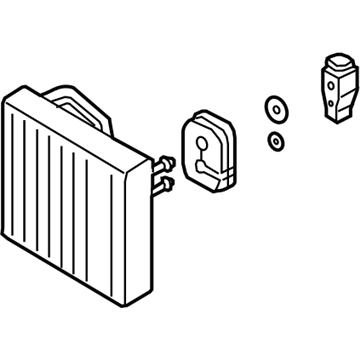

Volkswagen Jetta Evaporator Core Part Number: 1K1-820-103-E
$491.04 MSRP: $670.82
You Save: $179.78 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Evaporator; Evaporator Assembly
- Replaces: 1K1-820-103-B, 1K1-820-103-A, 1K1-820-103
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2005-2015 Volkswagen Jetta | 2.0T, 2.5, Base, GL, GL TDI, GLI, GLI SE, GLI SEL, GLS, GLS TDI, Hybrid, Hybrid SE, Hybrid SEL, Hybrid SEL Premium, S, SE, SEL, Sport, TDI, TDI Cup Edition, TDI Premium, TDI S, TDI SE, TDI SEL, Value Edition, Wolfsburg Edition | 4 Cyl 1.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View related parts

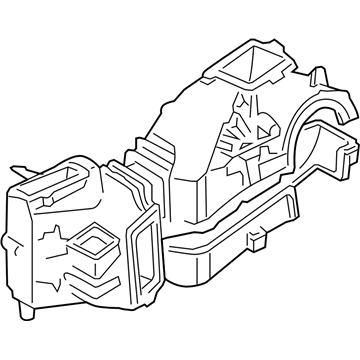

Volkswagen Jetta Case Part Number: 1J1-820-007-B
$414.20 MSRP: $565.85
You Save: $151.65 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing
- Replaces: 1J1-820-007-A
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1999-2005 Volkswagen Jetta | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

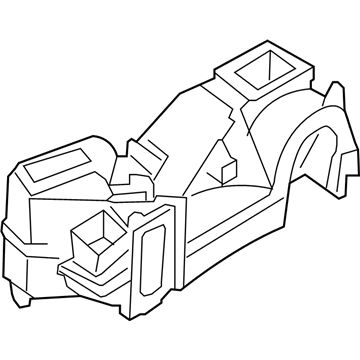

Volkswagen Jetta Case Part Number: 1J1-820-007-E
$695.39 MSRP: $876.91
You Save: $181.52 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1999-2005 Volkswagen Jetta | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Jetta Evaporator Part Number: 176-820-103
$214.91 MSRP: $301.00
You Save: $86.09 (29%)
ADD TO CART
Product Specifications
- Other Name: Evaporator Core
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1986-1988 Volkswagen Jetta | Base, Carat, GL, GLI, GLI 16-Valve, Wolfsburg Edition | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS
View related parts
Volkswagen Jetta Evaporator Part Number: 176-271-103-A
$335.98 MSRP: $458.98
You Save: $123.00 (27%)
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1989-1992, 1985 Volkswagen Jetta | Base, Carat, GL, GLI, GLI 16-Valve | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS

Volkswagen Jetta A/C Evaporator Core

Choose OEM A/C Evaporator Core for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace A/C Evaporator Core on your Jetta, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen Jetta parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen Jetta A/C Evaporator Core Parts and Q&A

Evaporator Core
1K1-820-103-E
Q: How to replace the A/C evaporator core in an automotive air conditioning system on Volkswagen Jetta?
A:
The air conditioning system should be emptied at an automotive air conditioning facility or a dealership service department. The second step is to take out the heater and the air conditioner housing and put it down on a clean working surface. Go ahead to lift off the evaporator core fasteners, divide the housing and remove the evaporator core out of the housing carefully. The reinstatement is in the opposite sequence of the removal process, with due careful attention being paid to reactive insulating or sealing materials being placed in place around the evaporator core pipes, and around the core itself. Each time the air conditioning system is reinstalled, new O-rings must be employed on the fittings. Should you replace the evaporator core with a new one, then add new refrigerant oil to the new part, however, always remember that it has to match up with the type of refrigerant, R-134a or R1234yf, which might be used in the vehicle. Lastly, the shop where the initial discharge was done must evacuate the system, recharge, and leak test the system.
