What precautions should be taken when disconnecting the battery and removing the upper Timing Chain, Timing Chain Tensioner, Timing Cover and Timing Cover Gasket for 5-cylinder engines on Volkswagen Jetta?

Question

Accepted Answer

In case the battery is removed, a number of systems will be required to be re-learned before they can be used again. The upper timing chain cover is removed by removing the engine cover and air filter housing, the battery and battery tray. Relax the right front wheel bolts, lift the front of the car and place it firmly on jackstands with the wheels blocked on the other end and remove the right front wheel. Secondly, take off the under vehicle splash shield, empty the coolant in the cooling system and take off the coolant reservoir. Disconnect the vacuum hose with the vacuum pump and the coolant hoses with the thermostat housing and withdraw the coolant pipe out of the thermostat housing by lifting the retaining clip and pulling the pipe out. Unweld the engine coolant temperature switch, loosen the thermostat housing with fasteners and then loosen the thermostat housing. Install a work in a diagonal manner, take off the upper timing chain cover with fasteners attached, and pry the end off the cylinder head. To install, remove all sealant from the mating surfaces, install the cover within four minutes of applying a 118-inch (3 mm) bead of RTV sealant, screw the bolts in a diagonal pattern to a required torque, install a new cover oil seal, and test and adjust the time of the valve. Removal of the camshaft chain cover seal: To get it out of the camshaft cover, it is necessary to remove the timing chain cover at first then tear the seal out of the camshaft cover at the back using a socket or a tube and push the new one in place and perform this by putting the cover on a flat surface lest it is damaged. In the case of the camshaft timing chain and tensioner, care should be taken, as the timing system is a bit complicated, and it is better to contact a specialist in case of doubts. To start with, disconnect the upper timing chain cover and valve cover, and lock the crankshaft at TDC with cylinder no. 5 and place the camshaft holding tool. Tensioner the timing chain piston and insert a pin to keep it in the compressed state, and then loosen the exhaust camshaft sprocket and intake camshaft adjuster sprocket. Install the whole tensioner assembly, chain guide and tensioner guide off the dowels on the cylinder head, but do not take out the pin that secures the tensioner piston. Take out the tensioner gasket and strainer, then take out the timing chain of the housing and note the direction the timing chain was turned in case it is required to be reused. To install, loop the camshaft timing chain on the double sprocket, place the chain guide and tensioner guide into place on the cylinder head dowels, move the tensioner strainer into place, and place the tensioner gasket and assembly to the cylinder head dowels, and tighten the fastener to the required specifications. Install the intake camshaft adjuster sprocker and loop the timing chain over sprocker and the exhaust camshaft sprocker and loosely tighten the sprocket mounting insert by hand. Take out the pin of the tensioner and push the piston forward to connect with the chain guide, change the time of the valve, and install it in the same order as the pin was removed.

Genuine Volkswagen Jetta Timing Cover Gasket

10 Timing Cover Gaskets found

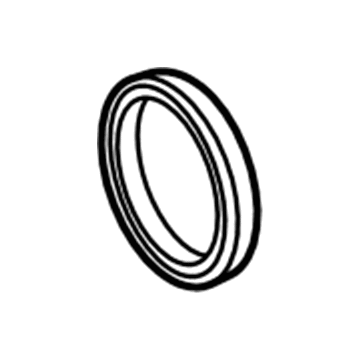

Volkswagen Jetta Rear Main Seal Part Number: 059-103-051-K

Volkswagen Jetta Timing Cover Gasket Part Number: 049-109-188-B

Volkswagen Jetta Front Crank Seal Part Number: 06L-103-085-B

Volkswagen Jetta Valve Cover Gasket Part Number: D-176-501-A1

Volkswagen Jetta Timing Cover Gasket Part Number: 06H-103-483-C

Volkswagen Jetta Cover Gasket Part Number: 07K-109-345

Volkswagen Jetta Oil Cooler Gasket Part Number: 038-117-070

Volkswagen Jetta Timing Cover Seal Part Number: 06H-103-483-D

Volkswagen Jetta Timing Cover Seal Part Number: 06L-103-583-C

Volkswagen Jetta Timing Cover Gasket Part Number: 06L-103-483-A
