What precautions should be taken when disconnecting the battery and replacing the instrument cluster on Volkswagen Rabbit?

If the battery is disconnected, several systems must be re-learned before they will work properly. The instrument cluster is not serviceable and must be replaced as a complete unit. The instrument cluster control module data must be saved using a factory scan tool prior to removal, and the new cluster must be programmed with a factory scan tool. For this reason, it is best to have a VW dealer or other qualified repair shop perform this job if replacement of the unit is required. First, disconnect the negative cable from the battery. Next, remove the steering column upper trim cover, and for 2011 models only, remove the radio. Then, remove the center vent fasteners from the radio opening in the instrument panel, and pry the left-hand vent, instrument cluster trim, and center vent out from the instrument panel as one piece. After that, remove the screws securing the cluster to the instrument panel. Pull the instrument cluster out from the instrument panel and remove it, taking care to pull it straight out to prevent damaging the electrical connector pins. Installation is the reverse of removal.

Genuine Volkswagen Rabbit Instrument Cluster

Speedometer Instrument Cluster

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Instrument Clusters found

View related parts

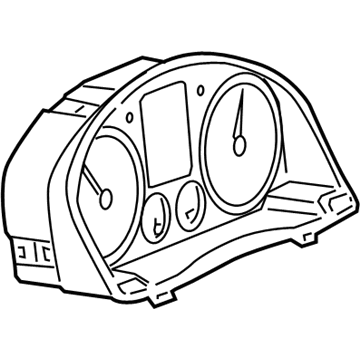

Volkswagen Rabbit Instrument Cluster Part Number: 1K0-920-953-PX-Z01
$755.18 MSRP: $952.31
You Save: $197.13 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument; Cluster Assembly
- Replaced by: 1K0-920-953-P-Z01
- Replaces: 1K0-920-953-HX-Z01
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2007 Volkswagen Rabbit | 2.5 | 5 Cyl 2.5 L GAS
View related parts
Volkswagen Rabbit Cluster Assembly Part Number: 1K0-920-973-CX-Z01
$755.18 MSRP: $952.31
You Save: $197.13 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaced by: 1K0-920-973-C-Z01
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2007 Volkswagen Rabbit | 2.5 | 5 Cyl 2.5 L GAS
View related parts
Volkswagen Rabbit Instrument Cluster Part Number: 1K0-920-954-SX-Z01
$608.85 MSRP: $765.14
You Save: $156.29 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument; Cluster Assembly, Instrument Cluster
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2008-2009 Volkswagen Rabbit | S | 5 Cyl 2.5 L GAS
View related parts

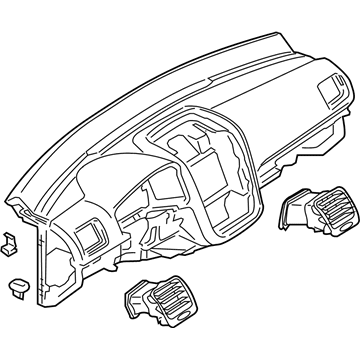

Volkswagen Rabbit Instrument Panel Part Number: 1K1-857-001-F-81X
$1082.74 MSRP: $1365.37
You Save: $282.63 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Dashboard
- Replaces: 1K1-857-001-F-84S, 1K1-857-001-E-PP8, 1K1-857-001-C-PP8, 1K1-857-001-C-80W, 1K1-857-001-E-80W, 1K1-857-001-J-81X, 1K1-857-001-H-81X
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2009 Volkswagen Rabbit | 2.5, S | 5 Cyl 2.5 L GAS
View related parts
Volkswagen Rabbit Fuel Gauge Part Number: 155-919-045
$29.48 MSRP: $40.95
You Save: $11.47 (29%)
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1984 Volkswagen Rabbit | GL, GTI, L, Wolfsburg Edition | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.7 L GAS, 4 Cyl 1.8 L GAS
View related parts
Volkswagen Rabbit Instrument Cluster Part Number: 1K0-920-974-QX-Z01
$967.96 MSRP: $1220.63
You Save: $252.67 (21%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Combination Instrument
- Replaced by: 1K0-920-974-Q-Z01
- Replaces: 1K0-920-974-QX-Z04, 1K0-920-974-JX-Z04, 1K0-920-974-JX-Z01
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2009 Volkswagen Rabbit | 2.5, S | 5 Cyl 2.5 L GAS

Volkswagen Rabbit Instrument Cluster

Choose OEM Instrument Cluster for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace Instrument Cluster on your Rabbit, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen Rabbit parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen Rabbit Instrument Cluster Parts and Q&A

Instrument Cluster
1K0-920-953-PX-Z01
Q: What precautions should be taken when disconnecting the battery and replacing the instrument cluster on Volkswagen Rabbit?
A:
If the battery is disconnected, several systems must be re-learned before they will work properly. The instrument cluster is not serviceable and must be replaced as a complete unit. The instrument cluster control module data must be saved using a factory scan tool prior to removal, and the new cluster must be programmed with a factory scan tool. For this reason, it is best to have a VW dealer or other qualified repair shop perform this job if replacement of the unit is required. First, disconnect the negative cable from the battery. Next, remove the steering column upper trim cover, and for 2011 models only, remove the radio. Then, remove the center vent fasteners from the radio opening in the instrument panel, and pry the left-hand vent, instrument cluster trim, and center vent out from the instrument panel as one piece. After that, remove the screws securing the cluster to the instrument panel. Pull the instrument cluster out from the instrument panel and remove it, taking care to pull it straight out to prevent damaging the electrical connector pins. Installation is the reverse of removal.
