What are the steps involved in removing and reinstalling front and rear bumpers, including considerations for the support beams and electrical components on Volkswagen GTI?

Front and rear bumpers are made up of fascia or bumper cover and metal structural beam with some minor differences in some models in the sequences of removal. In order to take off the front bumper cover, lift the car and undo the negative battery connection. Unscrew the bottom bumper cover mounting screws and then unscrew the hood from the top to get to the top mounting screws. The fenderwell splash shield has lower section which can be peeled back to reach the fenderwell bumper fasteners on each side. In case of the presence of a front spoiler, dismount its mounting fasteners and pull off the spoiler. With caution, stiffen the edges of the bumper cover at the rear, unclip them of the fenderwell, and draw the grille forward to loosen the retaining tabs at the bottom. Unplug any electrical connectors of the bumper-mounted parts, and then push the bumper assembly out and be careful of the paint and any headlight wiper hoses. Installation is done in the same order but in a reverse manner, to make sure that the alignment occurs, and the parking assist system can require calibration after the installation. In the case of the bumper support beam, take off the bolts joining the beam to the frame and put the beam back by attaching all the fasteners and then tightening them loosely. In the case of the rear bumper cover, first take out the taillight housing fitted into the body, then operate in the rear wheelwells, unscrewing fasteners in the liner and the evaporator canister shield. Take out the lower fasteners, which are under the bumper, release the sides of the bumper cover and release the upper tabs out of the taillight housing recess. Unscrew any electrical connectors that have attached to bumper-mounted parts, and then push the bumper assembly out with care. Removal is the opposite of reinstallation, making sure that everything is properly aligned and then tightened after which the parking assist system may be calibrated as well. In the case of the rear bumper support beam, the bolts attaching it to the frame are removed, where certain models might have brackets to the blind-spot detection system which must be removed before the support beam itself is removed, and then replaced by loosely fitting all the fasteners before tightening.

Genuine Volkswagen GTI Bumper

Bumper Fascia

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

11 Bumpers found

View related parts

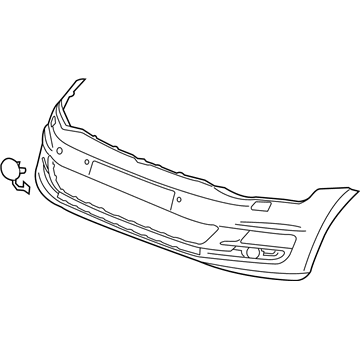

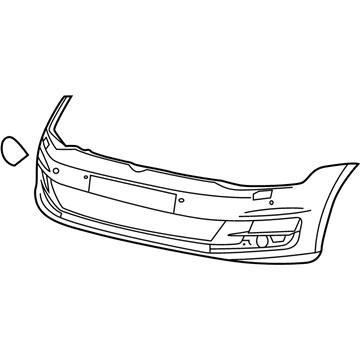

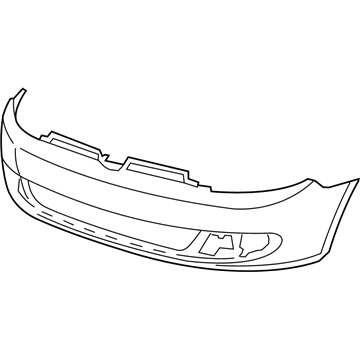

Volkswagen GTI Bumper Cover Part Number: 1K0-807-217-A-GRU
$247.06 MSRP: $337.52
You Save: $90.46 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2007 Volkswagen GTI | Base, Fahrenheit | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 1K6-807-417-C-GRU
$306.11 MSRP: $418.18
You Save: $112.07 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2009 Volkswagen GTI | Base, Fahrenheit | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-417-GRU
$323.76 MSRP: $442.30
You Save: $118.54 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2015-2017 Volkswagen GTI | Autobahn, S, SE, Sport | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-417-B-GRU
$386.86 MSRP: $528.50
You Save: $141.64 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2015-2017 Volkswagen GTI | Autobahn, S, SE, Sport | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5K6-807-417-G-GRU
$405.06 MSRP: $553.37
You Save: $148.31 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2010-2014 Volkswagen GTI | Base, Driver's Edition, Wolfsburg Edition | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5K0-807-217-CF-GRU
$412.98 MSRP: $564.19
You Save: $151.21 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Replaces: 5K0-807-217-BH-GRU, 5K0-807-217-N-GRU
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2010-2014 Volkswagen GTI | Base, Driver's Edition, Wolfsburg Edition | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-217-H-GRU
$423.54 MSRP: $578.60
You Save: $155.06 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2015-2017 Volkswagen GTI | Autobahn, S, SE, Sport | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-417-AE-GRU
$425.24 MSRP: $580.95
You Save: $155.71 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover; Bumper Cover
- Replaces: 5GM-807-417-AB-GRU
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2018-2021 Volkswagen GTI | Autobahn, Rabbit Edition, S, SE | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-417-AG-GRU
$431.47 MSRP: $589.44
You Save: $157.97 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover; Bumper Cover
- Replaces: 5GM-807-417-AD-GRU
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2018-2021 Volkswagen GTI | Autobahn, Rabbit Edition, S, SE | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 1K0-807-217-Q-GRU
$512.57 MSRP: $700.23
You Save: $187.66 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2008-2009 Volkswagen GTI | Base | 4 Cyl 2.0 L GAS
View related parts
Volkswagen GTI Bumper Cover Part Number: 5GM-807-217-BP-GRU
$523.88 MSRP: $715.68
You Save: $191.80 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Cover; Bumper Cover
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2018-2021 Volkswagen GTI | Autobahn, Rabbit Edition, S, SE | 4 Cyl 2.0 L GAS

Volkswagen GTI Bumper

The front protector of the car is the Volkswagen GTI Bumper, which takes the impact of low-speed hits to ensure that the sheet metal, lights, and engine bay of the hatchback are not damaged. Initial GTI designs applied a simple steel Bumper that was mounted on brackets, and its chrome finish was the only thing that gave it any appearance of style, as the primary objective remained strictly protective. With time, Volkswagen pushed this bar closer to the body and encircled it with formed plastic that conceals a solid support beam supported by energy-absorbing foam, a combination of security and cleaner appearance. The design grew into massive protrusions, which were dubbed Armco, in response to rules mandated in the 1970s in the United States that required parking Bumpers to shrug those bumps off, at the cost of style. The contemporary ones revert to the flush profile but retain the multi-layered formula of plastic skin, crushable core, and steel support, which means that the Bumper cushions minor collisions without increasing the weight. Both facings and backs are sold separately or in complete kits, and are shipped in finishes of chrome, black, or primed and ready to custom paint, and with optional Volkswagen mounting bracketry to make temporary installation fast. Should it be dented, bent, or corroded, a quick replacement will reinstate the structural integrity of the unit and maintain the safety of the passengers, as well as allowing the unique Volkswagen performance hatch to continue with its reliable everyday service at a price lower than that of the competitors.

Choose OEM Bumper for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace Bumper on your GTI, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen GTI parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen GTI Bumper Parts and Q&A

Bumper Cover
5GM-807-217-BP-GRU
Q: What are the steps involved in removing and reinstalling front and rear bumpers, including considerations for the support beams and electrical components on Volkswagen GTI?
A:
Front and rear bumpers are made up of fascia or bumper cover and metal structural beam with some minor differences in some models in the sequences of removal. In order to take off the front bumper cover, lift the car and undo the negative battery connection. Unscrew the bottom bumper cover mounting screws and then unscrew the hood from the top to get to the top mounting screws. The fenderwell splash shield has lower section which can be peeled back to reach the fenderwell bumper fasteners on each side. In case of the presence of a front spoiler, dismount its mounting fasteners and pull off the spoiler. With caution, stiffen the edges of the bumper cover at the rear, unclip them of the fenderwell, and draw the grille forward to loosen the retaining tabs at the bottom. Unplug any electrical connectors of the bumper-mounted parts, and then push the bumper assembly out and be careful of the paint and any headlight wiper hoses. Installation is done in the same order but in a reverse manner, to make sure that the alignment occurs, and the parking assist system can require calibration after the installation. In the case of the bumper support beam, take off the bolts joining the beam to the frame and put the beam back by attaching all the fasteners and then tightening them loosely. In the case of the rear bumper cover, first take out the taillight housing fitted into the body, then operate in the rear wheelwells, unscrewing fasteners in the liner and the evaporator canister shield. Take out the lower fasteners, which are under the bumper, release the sides of the bumper cover and release the upper tabs out of the taillight housing recess. Unscrew any electrical connectors that have attached to bumper-mounted parts, and then push the bumper assembly out with care. Removal is the opposite of reinstallation, making sure that everything is properly aligned and then tightened after which the parking assist system may be calibrated as well. In the case of the rear bumper support beam, the bolts attaching it to the frame are removed, where certain models might have brackets to the blind-spot detection system which must be removed before the support beam itself is removed, and then replaced by loosely fitting all the fasteners before tightening.
