How to remove and install the door lock and door lock cylinder on Volkswagen Rabbit?

Question

Accepted Answer

The lock cylinder is located only on the driver's side door, while the passenger's side door features an end cap, with the removal procedure being identical for both. Begin by opening the driver's door and removing the trim panel from the end of the door. Next, take off the lock cylinder cover cap and turn the Torx bolt counterclockwise until it stops, which will move the locking arm to the rear and release the lock cylinder; for 2011 models, a small screwdriver may be needed to pry the cap from the end of the lock cylinder. Remove the lock cylinder from the outside door handle, and the installation process is the reverse of removal. For the outside handle, follow the same initial steps to remove the lock cylinder, then use a small screwdriver to pry the release cable from the handle, and rotate the end of the handle outwards towards the front of the door for removal, with installation being the reverse. In 2011 models, the door skin is a one-piece shell, so first remove the door trim panel and water shield if equipped, then proceed to remove the lock cylinder and outside handle as previously described. Pry the trim panels from each end of the door, remove the outside handle frame mounting fastener, and carefully work around the door edges to remove the door skin mounting fasteners, noting their locations as they vary in size and style to avoid damage. Protect the paint by applying tape to the edges of the door skin before carefully lifting it from the door frame, with installation being the reverse. For the latch, remove the door trim panel and water shield if equipped, and for 2010 and earlier models, the outer door skin must be removed to access the latch. After removing the lock cylinder, outside handle, and door skin, disconnect the door handle bearing bracket rubber retainer and slide the bearing bracket out, then remove the two fasteners to withdraw the lock unit with its cover from the door. Disconnect the operating cable housing from the lock unit and the electrical connector, and unhook the interior handle operation cable from the lock unit by pulling the cable end straight out of the actuator lever, with installation being the reverse. For 2011 models, pry the cover up from the bottom to remove the access panel from the door, disconnect the electrical harness connector, and remove the lock cylinder or end cap. After removing the two fasteners, withdraw the lock unit with its cover from the door, disconnect the operating cable from the door handle, and unclip the cable from the lock assembly, noting the cable location. Finally, disconnect the operating cable housing from the lock unit and unhook the interior handle operation cable by rotating the cable end 90 degrees and unclipping it, with installation being the reverse of removal.

Genuine Volkswagen Rabbit Door Lock

13 Door Locks found

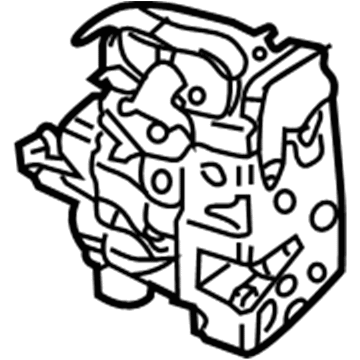

Volkswagen Rabbit Lock Part Number: 1K6-827-505-F-9B9

Volkswagen Rabbit Lock Part Number: 3B4-839-015-AP

Volkswagen Rabbit Lock Part Number: 3B1-837-015-AT

Volkswagen Rabbit Lock Part Number: 3B4-839-016-AP

Volkswagen Rabbit Lock Actuator Part Number: 3D1-837-016-AE

Volkswagen Rabbit Lock Part Number: 3B1-837-016-CG

Volkswagen Rabbit Lock Actuator Part Number: 3D1-837-015-AD

Volkswagen Rabbit Lock Part Number: 331-827-505-D

Volkswagen Rabbit Lock Part Number: 813-839-015-E

Volkswagen Rabbit Lock Part Number: 321-837-016

Volkswagen Rabbit Lock Part Number: 321-837-015

Volkswagen Rabbit Lock Part Number: 321-827-505-C

Volkswagen Rabbit Lock Part Number: 813-839-016-E
