Question 1

What should you know about Brake Pad Set replacement for front brake caliper configurations on Volkswagen Golf?

Accepted Answer

These models come in three types of front brake caliper design. The Bosch FN3 and FS Ill designs, in which the brake pads are mounted in the caliper, the FN3 type having an anti-rattle spring and the FS Ill not, and the PC57/C60/PC60 types, in which the brake pads are mounted in the caliper mounting bracket. First of all, open the top of the brake fluid reservoir and empty approximately two-thirds of the brake fluid by pouring it out, making sure to rinse all the spilt brake fluid with clean water. Unscrew the front vehicle bolts, lift it high on jackstands, and clog the wheels at the other end. Wheels: Clean the caliper and the disc using the brake system cleaner, then take the wheels off, one brake assembly at a time. To remove the calipers and open up room in which the new pads will be installed, move the piston back into the bore, detach the electrical connector on the brake pad wear indicator, and unclip the pad retaining spring. In the FN3 and FS Ill calipers, the end caps have to be removed off the guide bushing to access the caliper guide pins, then unscrew the caliper guide pins or mounting bolts of the caliper to pull the caliper off the mounting bracket in a way that the caliper is not strained against the brake hose. Take out the inner and outer pads (where applicable), check the brake disc, and see that the guide pins slide freely and then rub them with high-temperature brake grease. In order to install new pads, it is necessary to insert the caliper piston back into the cylinder, cut the inner and outer pad and insert them into the corresponding positions, lubricate the guide pins and put them back. Last, screw the caliper back in, reconnect the brake pad wear indicator, press the brake pedal to make sure it is properly attached, get the wheels back on, drop the vehicle, and verify the level of brake fluid then test to make sure the brakes are operating correctly.

Question 2

What steps should be followed for removing and installing rear brake calipers when using a Brake Pad Set on Volkswagen Golf?

Accepted Answer

They have two kinds of rear brake caliper mounting, one called the Bosch ZOH 38 type, and the other the Cl 38 type, and the caliper can be removed and installed in the same manner. Cl 38 type has butterfly anti-rattle springs on the outer edge of the brake pads, and the ZOH BIR 38 type has pad support plates on the caliper mounting bracket. Preliminarily, tighten the rear wheel bolts, block the front wheels, lift the rear of the vehicle and firmly hold it on jackstands before taking the rear wheels off. Wipe the caliper and area of caliper with brake system cleaner and dry it. Unscrew the caliper mounting bolts with the guide pins still in place with an open-end wrench to avoid rotation and then dispose the old bolts and replace them with new ones. Make certain that the caliper is lifted off of the brake pads, but that it is supported by a length of wire so that it is not straining the flexible brake hose. Take off the brake pads and also (Cl 38 caliper) anti-rattle springs in the caliper mounting bracket. Prior installations- before laying in the new pads, make sure the anti-rattle springs are not damaged or loose, make sure that the guide pins slide smoothly and make sure that the rubber guide pin boots are not damaged. In case guide pins are in good condition, lubricate the guide pins with the high temperature brake grease and fit them back. Wipe the caliper and piston and examine the dust seal and piston, including the possible damage and leakage, changing the caliper in case of need. In order to fit the new brake pads, screw the piston completely into the caliper bore by turning it clockwise using a caliper piston retraction tool, and empty some brake fluid in the master cylinder reservoir in order to avoid spills. Removable protective sheets on the pad backing plates can be removed and the pads can be installed on the mounting bracket with the friction material in contact with the brake disc. Hold the caliper back in place, with the anti-rattle springs in place on the pads, making sure the anti-rattle springs fit into place with the Bosch ZOH BIR 38-type caliper. Insert the caliper and fit the new mounting bolts, screwing them to the correct torque, without allowing the guide pins to be turned. Follow the same steps with the other rear brake caliper, and then press the brake pedal about 20 times or more to make sure that the pads are firmly in contact with the discs, and the discs are then free to turn. Install the wheels and wheel bolts, lower the vehicle and tighten the wheel bolts to the required torque. Lastly, verify the brake fluid level by checking the message and top upping the fluid where required and thoroughly inspect the brake working condition before putting the vehicle back in operation.

Genuine Volkswagen Golf Brake Pad Set

19 Brake Pad Sets found

Volkswagen Golf Brake Pads Part Number: 5C0-698-451-D

Volkswagen Golf Brake Pads Part Number: 7N0-698-451-A

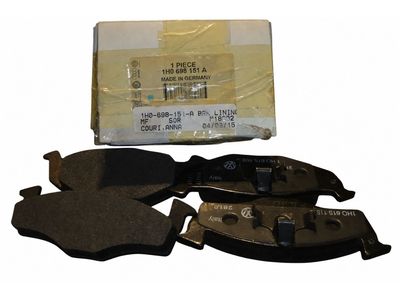

Volkswagen Golf Brake Pads Part Number: 1H0-698-151-A

Volkswagen Golf Brake Pads Part Number: 5Q0-698-151-M

Volkswagen Golf Brake Pads Part Number: 1K0-698-451-P

Volkswagen Golf Brake Pads Part Number: 1HM-698-151-A

Volkswagen Golf Brake Pads Part Number: 1J0-698-151-J

Volkswagen Golf Brake Pads Part Number: 1J0-698-151-P

Volkswagen Golf Brake Pads Part Number: 3Q0-698-451-N

Volkswagen Golf Brake Pads Part Number: 5K0-698-451-D

Volkswagen Golf Brake Pads Part Number: 5Q0-698-451-T

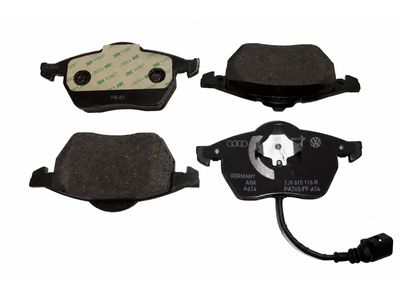

Volkswagen Golf Pads Part Number: 1J0-698-151-Q

Volkswagen Golf Brake Pads Part Number: 3C0-698-151-K

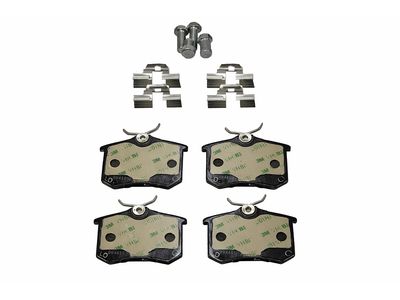

Volkswagen Golf Brake Pads Part Number: 6C0-698-451-A

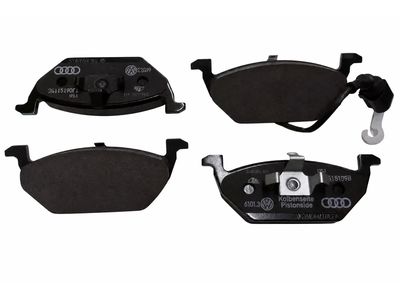

Volkswagen Golf Brake Pads Part Number: 1J0-698-151-F

Volkswagen Golf Brake Pads Part Number: 1J0-698-151-K

Volkswagen Golf Brake Pads Part Number: 1H0-698-451-H

Volkswagen Golf Front Pads Part Number: 191-698-151-L

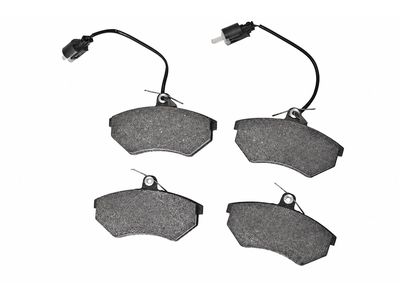

Volkswagen Golf Front Pads Part Number: 357-698-151-F
