How to remove and install the Air Temperature Sensor and MAP Sensor on Volkswagen Jetta?

The process is used on all engines other than 2.0L turbocharged CBFA and CCTA engines, the MAP sensor is positioned on the intake manifold and it is near the throttle body. The Intake Air Temperature (IAT) sensor goes hand in hand with the MAP sensor and is referred to as Intake Manifle Sensor. Start by taking away the engine cover. In the case of 1.4L engines, the air filter housing is to be taken out. The second step is to find and unconnect the electrical connector of the MAP/IAT sensor. Unclip the MAP sensor off the manifold or loosen the mounting fasteners wherever possible but take care not to lose the O-ring because there is no replacement part, a new sensor is supplied. Installation is a backward process of removal.

How to remove and install the Air Temperature Sensor on Volkswagen Jetta?

This procedure applies to 2.0L turbocharged CBFA and CCTA engines. On all other engines except 2018 and later 1.4L, the IAT is part of the MAP sensor and the Charge Air Pressure sensor. The IAT sensor is located at the back side of the intake manifold. For 2018 and later 1.4L engines, the IAT sensor is integrated into the MAF sensor located on the air filter housing lid. Begin by removing the engine cover. Next, locate and disconnect the electrical connector from the IAT sensor. Then, remove the IAT sensor mounting fastener and take the sensor out from the intake manifold, ensuring not to discard the O-ring, as it does not have a replacement part and only comes with a new sensor. Installation is the reverse of removal.

Genuine Volkswagen Jetta Air Temperature Sensor

Ambient Air Temperature Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Air Temperature Sensors found

View related parts

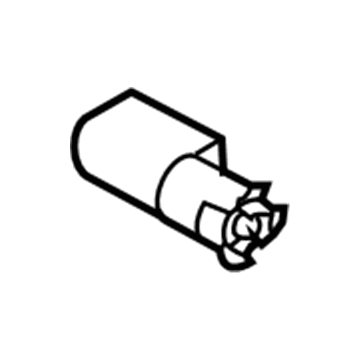

Volkswagen Jetta Temperature Sensor Part Number: 8Z0-820-535
$24.35 MSRP: $40.59
You Save: $16.24 (41%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2005-2015 Volkswagen Jetta | 2.0T, 2.5, Base, GL, GL TDI, GLI, GLI SE, GLI SEL, GLS, GLS TDI, Hybrid, Hybrid SE, Hybrid SEL, Hybrid SEL Premium, S, SE, SEL, Sport, TDI, TDI Cup Edition, TDI Premium, TDI S, TDI SE, TDI SEL, Value Edition, Wolfsburg Edition | 4 Cyl 1.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View related parts

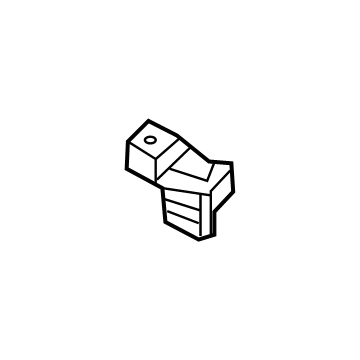

Volkswagen Jetta Temperature Sensor Part Number: 1J0-919-379
$43.31 MSRP: $60.15
You Save: $16.84 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Air Temperature Sensor, Temperature Sensor
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1999 Volkswagen Jetta | GL, GLS, GLX, TDI | 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

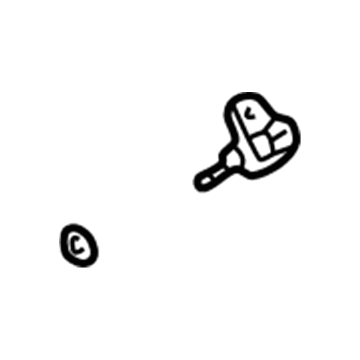

Volkswagen Jetta Temperature Sensor Part Number: 1J0-919-379-A
$48.71 MSRP: $67.65
You Save: $18.94 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2000-2005 Volkswagen Jetta | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

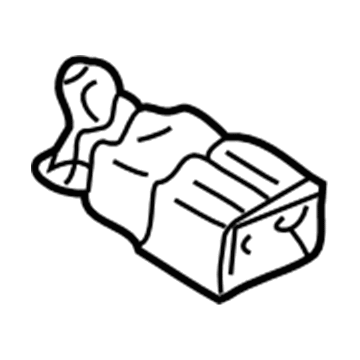

Volkswagen Jetta Temperature Sensor Part Number: 06B-905-379-G
$83.29 MSRP: $116.65
You Save: $33.36 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2012-2018, 2003-2005 Volkswagen Jetta | GL, GL TDI, GLI, GLI SE, GLI SEL, GLS, GLS TDI, GLX, TDI, TDI Premium, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

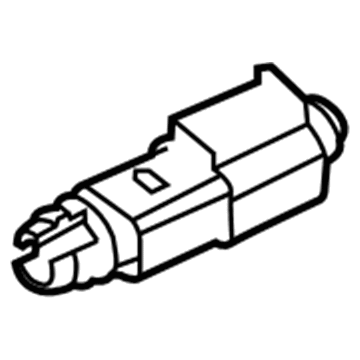

Volkswagen Jetta Temperature Sensor Part Number: 058-905-379
$86.86 MSRP: $121.65
You Save: $34.79 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor; Air Temperature Sensor, Temperature Sensor
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2002 Volkswagen Jetta | GL, GLI, GLS, GLX, TDI | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Jetta Temperature Sensor Part Number: 028-906-081
$27.22 MSRP: $45.36
You Save: $18.14 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor; Air Temperature Sensor, Temperature Sensor
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1997-1999 Volkswagen Jetta | TDI | 4 Cyl 1.9 L DIESEL

Volkswagen Jetta Air Temperature Sensor

Choose OEM Air Temperature Sensor for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace Air Temperature Sensor on your Jetta, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen Jetta parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen Jetta Air Temperature Sensor Parts and Q&A

Temperature Sensor
06B-905-379-G
Q: How to remove and install the Air Temperature Sensor and MAP Sensor on Volkswagen Jetta?
A:
The process is used on all engines other than 2.0L turbocharged CBFA and CCTA engines, the MAP sensor is positioned on the intake manifold and it is near the throttle body. The Intake Air Temperature (IAT) sensor goes hand in hand with the MAP sensor and is referred to as Intake Manifle Sensor. Start by taking away the engine cover. In the case of 1.4L engines, the air filter housing is to be taken out. The second step is to find and unconnect the electrical connector of the MAP/IAT sensor. Unclip the MAP sensor off the manifold or loosen the mounting fasteners wherever possible but take care not to lose the O-ring because there is no replacement part, a new sensor is supplied. Installation is a backward process of removal.
Temperature Sensor
8Z0-820-535
Q: How to remove and install the Air Temperature Sensor on Volkswagen Jetta?
A:
This procedure applies to 2.0L turbocharged CBFA and CCTA engines. On all other engines except 2018 and later 1.4L, the IAT is part of the MAP Sensor and the Charge Air Pressure sensor. The IAT sensor is located at the back side of the intake manifold. For 2018 and later 1.4L engines, the IAT sensor is integrated into the MAF sensor located on the air filter housing lid. Begin by removing the engine cover. Next, locate and disconnect the electrical connector from the IAT sensor. Then, remove the IAT sensor mounting fastener and take the sensor out from the intake manifold, ensuring not to discard the O-ring, as it does not have a replacement part and only comes with a new sensor. Installation is the reverse of removal.
