How to replace the Hood Latch, Hood Release Cable and Lift Support on Volkswagen Passat?

To replace the latch, begin by opening the hood and removing the nuts or bolts to detach the latch assembly. For Passat models, pry off the retaining clip and detach the safety latch handle. Next, detach the cable from the latch assembly and remove the latch, with installation being the reverse of removal. For the cable, detach the cable case from the bracket and release the cable end from the latch in the engine compartment. In the passenger compartment, remove the driver's side kick panel and the screws securing the hood release handle, then pull the handle downward to release the cable. Attach a wire or string to the end of the old cable, and in the engine compartment, release the cable grommet from the cowl and the clips at the inner edge of the left front fender well until the cable is free. Pull the cable through the cowl into the engine compartment, connect the string or wire to the new cable, and pull it through the cowl into the passenger compartment. Complete the installation by fastening all cable retaining clips in their original location and seating the cable grommet properly. For the support strut, open the hood and support it securely, then use a small screwdriver to detach the retaining clips at both ends of the support strut before prying or pulling sharply to detach it from the vehicle, with installation being the reverse of removal.

Genuine Volkswagen Passat Hood Latch

Engine Hood Latch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Hood Latches found

View related parts

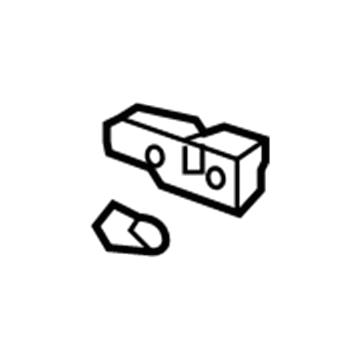

Volkswagen Passat Lock Part Number: 3B0-823-509-T
$59.24 MSRP: $70.53
You Save: $11.29 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch
- Replaces: 3B0-823-509-M
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1998-2001 Volkswagen Passat | 4 Motion, GLS, GLS 4 Motion, GLX, GLX 4 Motion | 4 Cyl 1.8 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Passat Lock Part Number: 3B0-823-509-AB
$47.50 MSRP: $56.54
You Save: $9.04 (16%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch
- Replaces: 3B0-823-509-S
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2001-2005 Volkswagen Passat | GL, GL TDI, GLS, GLS 4 Motion, GLS TDI, GLX, GLX 4 Motion, W8 | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L DIESEL, 6 Cyl 2.8 L GAS, 8 Cyl 4.0 L GAS
View related parts

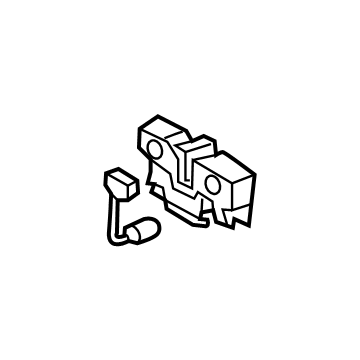

Volkswagen Passat Lock Part Number: 5U0-823-509-N
$68.83 MSRP: $82.63
You Save: $13.80 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch; Lock, Lock Switch
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2012-2022 Volkswagen Passat | GT, Limited Edition, R-Line, S, SE, SE R-Line, SEL, SEL Premium, Sport, TDI SE, TDI SEL, TDI SEL Premium, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.6 L GAS
View related parts
Volkswagen Passat Lock Part Number: 5C7-823-509-B
$107.08 MSRP: $128.53
You Save: $21.45 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch; Lock Switch
- Replaces: 5C7-823-509-A, 5C7-823-509
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2012-2019 Volkswagen Passat | GT, Limited Edition, R-Line, S, SE, SE R-Line, SEL, SEL Premium, Sport, TDI SE, TDI SEL, TDI SEL Premium, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS, 6 Cyl 3.6 L GAS
View related parts
Volkswagen Passat Lock Part Number: 5C7-823-509-E
$113.44 MSRP: $136.19
You Save: $22.75 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch; Lock, Lock Switch
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2022 Volkswagen Passat | Limited Edition, R-Line, S, SE, SE R-Line, SEL, Wolfsburg Edition | 4 Cyl 2.0 L GAS
View related parts
Volkswagen Passat Lock Part Number: 3C1-823-509-H
$90.09 MSRP: $108.16
You Save: $18.07 (17%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock Switch
- Replaces: 3C1-823-509-E, 3C1-823-509-G, 3C1-823-509-C, 3C1-823-509-F, 3C1-823-509-D, 3C1-823-509-J
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2006-2010 Volkswagen Passat | 2.0T, 3.6, Komfort, Lux, Turbo, Value Edition, VR6, Wolfsburg Edition | 4 Cyl 2.0 L GAS, 6 Cyl 3.6 L GAS
View related parts
Volkswagen Passat Lock Part Number: 3A0-823-509
$56.16 MSRP: $78.00
You Save: $21.84 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Latch
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1990-1997 Volkswagen Passat | CL, GL, GLS, GLX, TDI | 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS

Volkswagen Passat Hood Latch

The main responsibility of the Volkswagen Passat Hood Latch is to secure the hood while a car is on the road, as it prevents wind and debris from accessing the engine, radiator, battery, etc. The latch is found on the front portion of the hood and is attached to a release cable, which passes to a small handle low on the driver's side below the steering column. A single push on this handle sets the primary catch, and a secondary safety catch at the nose has to be opened by hand before the hood will fully open; this two-step design of the Hood Latch is an added safety measure. Such a basic design resembles a general Volkswagen design philosophy of ease of use. Over decades of Volkswagen manufacturing, the basic mechanism has remained the same, and it is based on spring-loaded steel catches, a braided cable, and an ergonomic lever; thus the driver is aware of the procedure, regardless of whether their car is a 1990s sedan or a brand new one. Modest customizations, like a handle covered in plastic to improve grip or a less noisy striker, are the only significant variations, i.e. there has never been an all-out change to an entirely different style of latch on the Passat. Since the system is still simple and largely mechanical, road grime is its great menace, hence owners must keep the latch clean and lightly lubricated to make sure the catches snap together. Altogether, the Hood Latch in Volkswagen vehicles offers stable dual-stage safety that combines ease of accessing the vehicle to perform regular maintenance and strong safety at highway speeds.

Choose OEM Hood Latch for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace Hood Latch on your Passat, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen Passat parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen Passat Hood Latch Parts and Q&A

Lock
3B0-823-509-AB
Q: How to replace the Hood Latch, Hood Release Cable and Lift Support on Volkswagen Passat?
A:
To replace the latch, begin by opening the hood and removing the nuts or bolts to detach the latch assembly. For Passat models, pry off the retaining clip and detach the safety latch handle. Next, detach the cable from the latch assembly and remove the latch, with installation being the reverse of removal. For the cable, detach the cable case from the bracket and release the cable end from the latch in the engine compartment. In the passenger compartment, remove the driver's side kick panel and the screws securing the hood release handle, then pull the handle downward to release the cable. Attach a wire or string to the end of the old cable, and in the engine compartment, release the cable grommet from the cowl and the clips at the inner edge of the left front fender well until the cable is free. Pull the cable through the cowl into the engine compartment, connect the string or wire to the new cable, and pull it through the cowl into the passenger compartment. Complete the installation by fastening all cable retaining clips in their original location and seating the cable grommet properly. For the support strut, open the hood and support it securely, then use a small screwdriver to detach the retaining clips at both ends of the support strut before prying or pulling sharply to detach it from the vehicle, with installation being the reverse of removal.
