How to remove and install the front wheel bearing and front wheel hub on Volkswagen Jetta?

In order to take off the wheel trim or hub cap, loosen the wheel bolts and driveaxle bolt by a maximum of 90 degrees when the vehicle is standing on the wheels. The second thing would be to loosen the wheel bolts, lift up the vehicle and place it safely on jackstands before removing the wheel. Next are the brake caliper, caliper mounting bracket and brake disc that should be removed off the hub with the support of a piece of length wire or rope under the brake caliper. Take off the wheel speed sensor, and then remove the driveaxle/hub bolt, striking out the CV joint of the hub with a soft-faced hammer; it must not pull off, a puller will be required. Install spline-drive tool by removing the shield on the steering knuckle taking out the disc shield mounting bolts, then the hub/bearing assembly mounting bolts on the back of the steering knuckle and cleaning out the bolt head recesses. In an instance where the tool fails to connect with the fasteners with the driveaxle fitted, remove the driveaxle. The hub/bearing component in the steering knuckle and driveaxle is to be carefully removed without overextending the inner CV joint. To install, it must have smooth mounting or must not have burrs and nicks on the mounting surfaces of the steering knuckle and driveaxle splines and then install the hub/bearing assembly. Apply a multi purpose grease to the axle splines, insert the driveaxle into the hub/bearing assembly as the driveaxle is connected to the steering knuckle and then install a new driveaxle/hub bolt but do not tighten. Install the brake disc, caliper mounting bracket and caliper and ensure that the hub/ bearing bolts are tightened to the prescribed torque, and clearly tighten the fasteners to the correct torque levels. Lastly, grease the wheel, loosen the jackstands, lower the vehicle and screw the driveaxle/hub bolt and the wheel bolts to the required torque.

Genuine Volkswagen Jetta Wheel Hub

Wheel Axle Hub

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Wheel Hubs found

View related parts

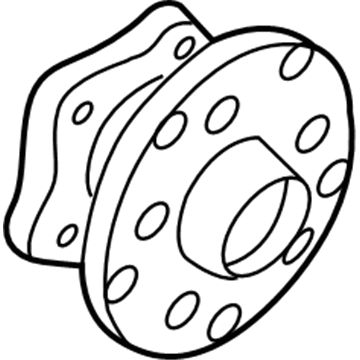

Volkswagen Jetta Hub Part Number: 191-407-615
$132.09 MSRP: $185.00
You Save: $52.91 (29%)
ADD TO CART
Product Specifications
- Other Name: Wheel Hub
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1985-1987 Volkswagen Jetta | Base, GL, GLI, GLI 16-Valve, Wolfsburg Edition | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS
View related parts

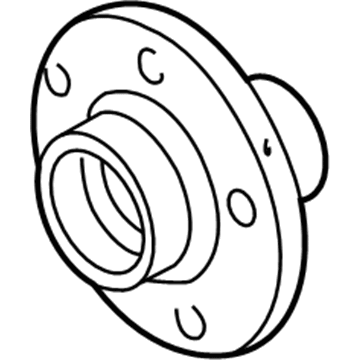

Volkswagen Jetta Wheel Bearing Part Number: 5Q0-407-621-F
$137.39 MSRP: $192.43
You Save: $55.04 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2024 Volkswagen Jetta | GLI 35th Anniversary Edition, GLI Autobahn, GLI S, R-Line, S, SE, SEL, SEL Premium, Sport | 4 Cyl 1.4 L GAS, 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts

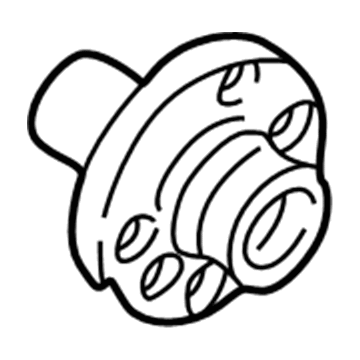

Volkswagen Jetta Hub Part Number: 1H0-407-613-B
$148.51 MSRP: $208.00
You Save: $59.49 (29%)
ADD TO CART
Product Specifications
- Other Name: Wheel Hub
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1994-1999 Volkswagen Jetta | GLX | 6 Cyl 2.8 L GAS
View related parts

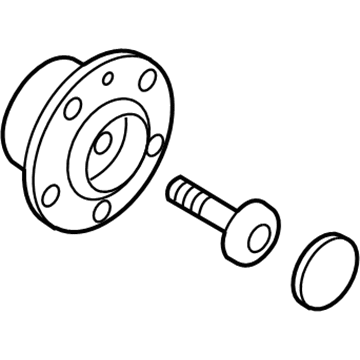

Volkswagen Jetta Hub & Bearing Assembly Part Number: 5WF-501-611
$235.61 MSRP: $329.99
You Save: $94.38 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2023 Volkswagen Jetta | GLI 35th Anniversary Edition, GLI Autobahn, GLI S, R-Line, S, SE, SEL, SEL Premium, Sport | 4 Cyl 1.4 L GAS, 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts

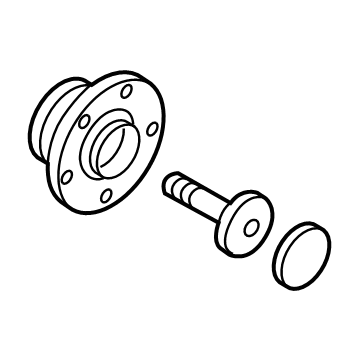

Volkswagen Jetta Hub & Bearing Part Number: 5Q0-598-611
$253.14 MSRP: $345.82
You Save: $92.68 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bearing
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2024, 2011-2013 Volkswagen Jetta | Base, GLI, Hybrid, Hybrid SE, Hybrid SEL, R-Line, S, SE, SEL, SEL Premium, Sport, TDI, TDI Premium | 4 Cyl 1.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 1.4 L GAS, 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View related parts

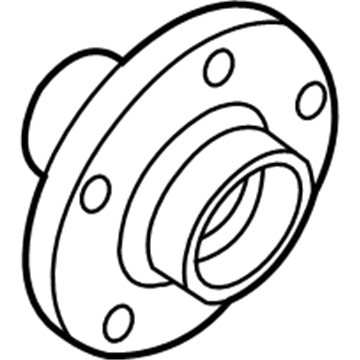

Volkswagen Jetta Hub Part Number: 357-407-613-B
$255.27 MSRP: $348.74
You Save: $93.47 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub; Hub
- Position: Front
- Replaces: 357-407-615-E, 357-407-615
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1988-1999 Volkswagen Jetta | Base, Carat, Celebration Edition, City, GL, GLI 16-Valve, GLS, GT, Jazz, K2, Limited Edition, TDI, Trek, Wolfsburg Edition | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS
View related parts

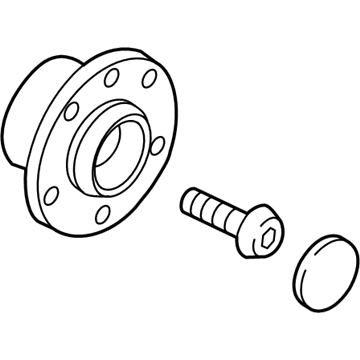

Volkswagen Jetta Bearing Assembly Part Number: 1T0-501-611-AJ
$235.61 MSRP: $329.99
You Save: $94.38 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub
- Replaced by: 5WF-501-611
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2019-2024 Volkswagen Jetta | GLI 35th Anniversary Edition, GLI Autobahn, GLI S, R-Line, S, SE, SEL, SEL Premium, Sport | 4 Cyl 1.4 L GAS, 4 Cyl 1.5 L GAS, 4 Cyl 2.0 L GAS
View related parts
Volkswagen Jetta Hub Part Number: 1J0-407-613-G
$323.29 MSRP: $441.65
You Save: $118.36 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub; Hub
- Position: Front
- Replaces: 1J0-407-613-C
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1995-2005 Volkswagen Jetta | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Jetta Hub & Bearing Part Number: 8E0-501-611-J
$308.23 MSRP: $421.09
You Save: $112.86 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub; Hub Assembly, Rear Wheel Bearing
- Replaces: 8E0-501-611
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 1998 Volkswagen Jetta | GL, GLS, GLX, GT, K2, TDI, Wolfsburg Edition | 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Jetta Hub Part Number: 8N0-407-613-A
$356.84 MSRP: $487.49
You Save: $130.65 (27%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Wheel Hub; Hub
- Position: Front
- Replaces: 8N0-407-613-B
- Warranty: This genuine part is guaranteed by Volkswagen's factory warranty.
Fits the following Vehicles:
- 2003-2004 Volkswagen Jetta | GLI, GLX | 6 Cyl 2.8 L GAS

Volkswagen Jetta Wheel Hub

The Volkswagen Jetta Wheel Hub is the robust connection that holds all the wheels to the car and allows smooth and safe rotation. The hub assembly, which is located between the brake rotor or drum and the drive axle, can contain bearings, studs, and in many cases the wheel speed sensor applied with ABS, and it is both strong and accurate to a point that the steering feels solid and predictable. The majority of Volkswagen compact sedans in recent generations are based on the integral unit bearing design, which is made up of hub, bearing, and sensor in a single, sealed module and replaced as a unit when wear becomes evident. In previous designs, certain models had unit bearings that could be pushed open once the steering knuckle had been disassembled and a new bearing could be installed, still using the existing hub. Non-driven rear axles of this style fit two opposite tapered roller bearings within a replaceable housing that offers long life when they are maintained in good condition through lubrication. Irrespective of style, the Wheel Hub's goal remains unchanged, to reduce friction, support vehicle weight, and transfer torque without wobble. To choose the right Wheel Hub, one has to watch the bolt pattern, flange depth, and axle extension because Volkswagen manufactures minor differences between trims and years. The retention of factory geometry maintained by a direct-fit hub ensures that your Jetta can stop straight when braking and turn when cornering without causing early bearing wear. Since every Volkswagen chassis indicates a specific torque value for the central nut and lug bolts, installers are required to use those values to prevent excessive stress on bearings.

Choose OEM Wheel Hub for superior quality and long-lasting durability. They match the Volkswagen's factory specifications exactly and pass strict quality control. If you plan to replace Wheel Hub on your Jetta, put OEM at the top of your list. You'll get the right fit, reliable performance, and peace of mind. We stock an extensive inventory of genuine Volkswagen Jetta parts. It is easy to find what you need. You will love our competitive prices that help you save. No more hassle with returns or guesswork. Every part includes a warranty straight from the manufacturer. Get trusted quality, strong durability, and real value today.

Volkswagen Jetta Wheel Hub Parts and Q&A

Hub & Bearing
5Q0-598-611
Q: How to remove and install the front wheel bearing and front wheel hub on Volkswagen Jetta?
A:
In order to take off the wheel trim or hub cap, loosen the wheel bolts and driveaxle bolt by a maximum of 90 degrees when the vehicle is standing on the wheels. The second thing would be to loosen the wheel bolts, lift up the vehicle and place it safely on jackstands before removing the wheel. Next are the brake caliper, caliper mounting bracket and brake disc that should be removed off the hub with the support of a piece of length wire or rope under the brake caliper. Take off the wheel speed sensor, and then remove the driveaxle/hub bolt, striking out the CV joint of the hub with a soft-faced hammer; it must not pull off, a puller will be required. Install spline-drive tool by removing the shield on the Steering Knuckle taking out the disc shield mounting bolts, then the hub/bearing assembly mounting bolts on the back of the steering knuckle and cleaning out the bolt head recesses. In an instance where the tool fails to connect with the fasteners with the driveaxle fitted, remove the driveaxle. The hub/bearing component in the steering knuckle and driveaxle is to be carefully removed without overextending the inner CV joint. To install, it must have smooth mounting or must not have burrs and nicks on the mounting surfaces of the steering knuckle and driveaxle splines and then install the hub/bearing assembly. Apply a multi purpose grease to the axle splines, insert the driveaxle into the hub/bearing assembly as the driveaxle is connected to the steering knuckle and then install a new driveaxle/hub bolt but do not tighten. Install the brake disc, caliper mounting bracket and caliper and ensure that the hub/ bearing bolts are tightened to the prescribed torque, and clearly tighten the fasteners to the correct torque levels. Lastly, grease the wheel, loosen the jackstands, lower the vehicle and screw the driveaxle/hub bolt and the wheel bolts to the required torque.
