Question 1

How should piston rings be installed on pistons after checking end gaps on Volkswagen Cabrio?

Accepted Answer

It is assumed at this stage that the pistons are properly fitted to their connecting rods, and that the clearance of the piston ring to groove is checked. The end gaps should be verified by nature before the rings are installed on the pistons by fitting the rings into the cylinder bores. Place the piston assemblies and the new ring sets on a clean work surface to leave the parts together during and after end gap checking with the crankcase placed on its side to reach into the top and bottom of the bores. Install the No. 1 piston top ring and install it into the top of the bore with the No. 1 piston as a ram to press the ring down the bore to the bottom and has to be perfectly square by pressing hard against the piston crown. Check using feeler gauges to check the clearance between the ends of the piston ring and make sure that the specific blade fits through the clearance with a minimum of resistance and repeat the process with all twelve rings. When new rings are being fitted, it is not likely that the end gaps should be too narrow, but in case a measurement is discovered to be undersize, it should be altered so that the ends of the ring are not in contact with one another during operation and thus run the risk of damaging the engine. This is corrected by slowly rubbing the ends of the ring, remembering to put the rings and piston assemblies in the proper sequence. When all the end gaps of the piston rings have been confirmed they may then be installed on the pistons, beginning with the lowest ring groove (oil control ring) first, and then upwards, with each oil control ring having two side rails, separated by an expander ring, and the two compression rings being cross-sectionally different and to be seated into their correct groove and orientation with the help of a piston ring installation tool. When fitting the rings, make sure that the marks marked on one side of each compression ring, which indicates the upper facing surface, are facing upward, and the gaps at the end of the rings around the piston are spaced at 120-degree intervals to each other, and that there are no special fitting instructions given to the user by the piston ring manufacturer.

Question 2

How should the end gaps of piston rings be checked and corrected before installation on Volkswagen Passat?

Accepted Answer

The ring end gaps should be verified before fitting the new piston rings, the piston ring side clearance being checked with the correctness of the piston ring end clearance. Preparing the end gap measurement and assembling the engine, set the piston/connecting rod systems and the new sets of rings to match with the same piston and cylinder. You have to insert the top ring into the first cylinder making sure that it is in line with the walls of the cylinder by pushing it into the cylinder with the top of the piston, and then putting it close to the bottom of the cylinder. The end gap is measured using feeler gauges between the ends of the ring until a gauge matching the width of the gap is located making sure it slides with minimal drag. In case there is not enough gap between the ends of the rings, it needs to be increased to ensure that the ring ends will not collide with each other during engine operation, which can result in severe damage; this may be achieved by filing the ends of the rings carefully outside and then removing the burrs. Excess end gap is not critical until it passes 0.040-inch and it is imperative to check that the correct rings are in place particularly when the engine block has been bored oversize. Proceed to repeat this process to all the cylinders with the matching rings, pistons, and cylinders. After checking and repairing the gaps on the end of the rings, now fit the rings on the pistons, first the oil control ring, which can either be a one-piece ring or a three-piece ring. When three-piece oil rings are used, then place the spacer/expander into the groove, and make certain that any anti-rotation tang is in place. Install the bottomside and topside rail with no piston ring installation tool to prevent damage and make sure that the rails have the ability to rotate freely in the ring groove. Then install the middle ring and make sure that the identification mark is facing up then install the top ring in a similar way, without mixing up the two. And at last do the same with the rest of the pistons and rings.

Genuine Volkswagen Piston Ring

39 Piston Rings found

Volkswagen Piston Rings Part Number: 03L-198-151-C

Volkswagen Piston Rings Part Number: 025-198-151

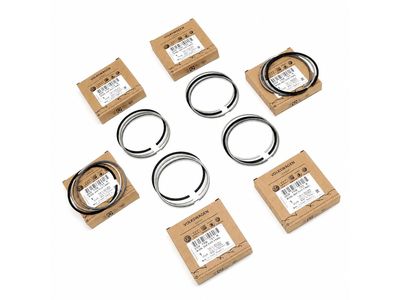

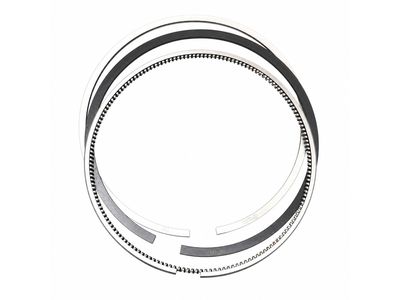

Volkswagen Piston Rings Part Number: 059-198-151-K

Volkswagen Piston Ring Set Part Number: ZBC-198-181-A

Volkswagen Piston Rings Part Number: 025-198-151-A

Volkswagen Piston Rings Part Number: 04L-198-151

Volkswagen Piston Rings Part Number: 04E-198-151-AJ

Volkswagen Piston Rings Part Number: 06D-198-151-E

Volkswagen Piston Ring Set Part Number: 026-198-151-A

Volkswagen Piston Ring Set Part Number: 053-198-151-C

Volkswagen Piston Ring Set Part Number: 03L-198-151-A

Volkswagen Piston Rings Part Number: 044-198-151

Volkswagen Piston Rings Part Number: 04E-198-151-AL

Volkswagen Piston Rings Part Number: 06D-198-151-C

Volkswagen Piston Rings Part Number: 04E-198-151

Volkswagen Piston Rings Part Number: 04E-198-151-B

Volkswagen Piston Ring Set Part Number: 06D-198-151-A

Volkswagen Piston Rings Part Number: 06H-198-151-G

Volkswagen Piston Rings Part Number: 06H-198-151-P

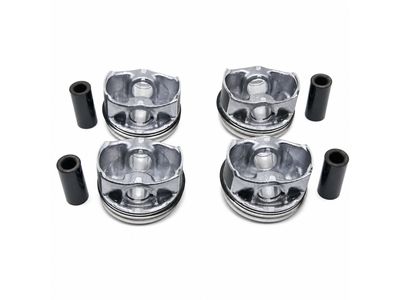

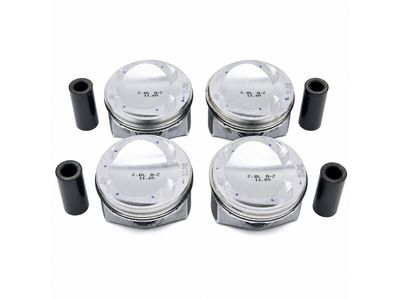

Volkswagen Piston Rings Part Number: 06K-198-151-A
