Question 1

What tools and steps are necessary for replacing spark plugs on Volkswagen Jetta?

Accepted Answer

The spark plugs are found in the cylinder head and the equipment to change them usually consists of a spark plug socket that will fit to a ratchet, different extensions and a feeler gauge to measure and adjust the spark plug gap. A torque wrench is advised in tightening the plugs properly particularly because such engines are made of aluminum in the cylinder head. Before proceeding, it is recommended to buy new spark plugs in advance and seat them to the appropriate gap and replace them one at a time, making sure that the right type is purchased to fit the particular engine. Meanwhile, the engine must be in full cool before the removal of any plugs, and the new plugs can be inspected also the gaps should be checked. The gap can be checked by putting the relevant thickness gauge between the electrodes, and cracks in the body of the spark plug have to be recorded, and broken plugs cannot be utilized. In order to protect the paint, wrap up the fender with fender cover or a blanket. There is one centrally located spark plug in each of the cylinders, and the ignition coils are mounted directly above the spark plug; it is necessary to remove the ignition coils beforehand. Provided that there is compressed air used, it is recommended to blow out any dust surrounding the spark plug to avoid debris making its way to the cylinder. The spark plug can be removed by putting socket over it and turning it counter clockwise. A comparison between the old spark plug and a chart may give information regarding the engine running status. The likelihood of the threads of the new spark plugs seizing in the aluminum head can be prevented by lightly applying an anti-seize compound on the threads. To prevent the cross threading during the time of installation, a piece of rubber hose can also be attached to the end of the spark plug that would act as a guide and it would not damage the threads. Install and screw the spark plug to the correct torque after which the rest of the plugs should be installed.

Question 2

How to replace spark plugs on Volkswagen Passat?

Accepted Answer

To install the new spark plugs, assemble the tools required, such as a spark plug socket that fits with a ratchet, a range of extensions and a gap gauge that will be used to measure and regulate the gaps on the new plugs. The removal plug boots can be separated with the help of special equipment, and the tightening of the boots and the plugs will be necessary with the help of a torque wrench. Order new plugs beforehand, and make sure they are the right kind that fits your engine, and set them to the right gap before beginning the replacement process. Let the engine cool down, and then take off the plastic cover. During the waiting period, observe the defects of the new plugs and close the gaps with the use of a tapered thickness gauge to make sure that the gap is accurate and the side electrode aligns with the center one. Once you are ready, unplug or unscrew the ignition coil or spark plug wire, and only pull on the boot. Apply forced air to the spark plug hole to remove debris to avoid contamination. Insert the spark plug socket and screw it counterclockwise to take it out, with some more parts having to be removed on some of the cylinders. Compare old spark plug to some reference attaching a chart to determine engine condition and a layer of anti-seize compound may be applied to the threads of the new plugs before fitting. Install the new plug by hand-tightening the new plug into the hole, followed by a torque wrench or a ratchet, and installing it with the help of a short length of a rubber hose to make the installation easier and prevent cross-threading. Lastly, reconnect the plug wire or ignition coil by twisting it back in place, and so forth, connecting the rest of the plugs, one at a time, so that they do not become mixed up.

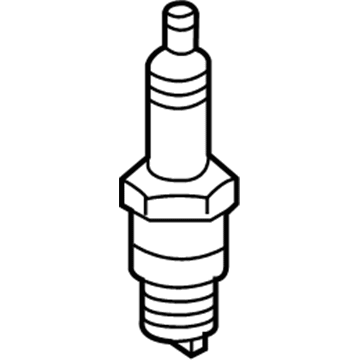

Genuine Volkswagen Spark Plug

17 Spark Plugs found

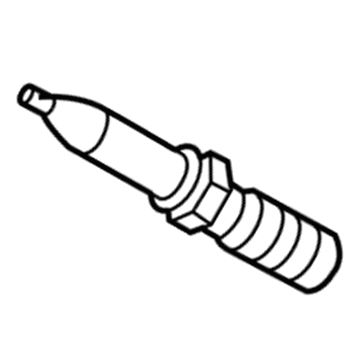

Volkswagen Spark Plug Part Number: 7B0-905-600

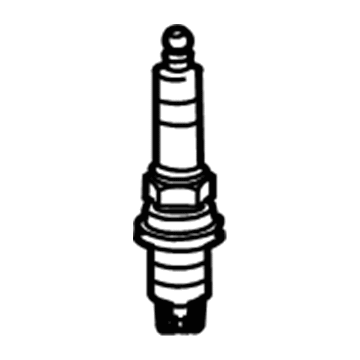

Volkswagen Spark Plug Part Number: 101-905-600-C

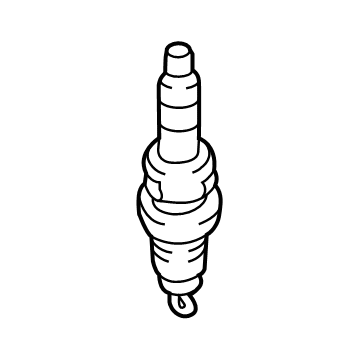

Volkswagen Spark Plug Part Number: 101-905-601-F

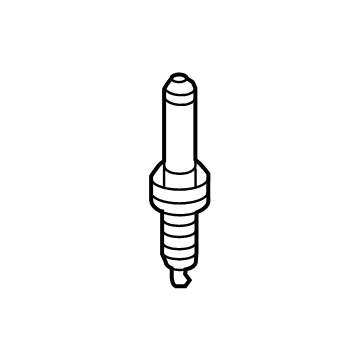

Volkswagen Spark Plug Part Number: 101-905-607

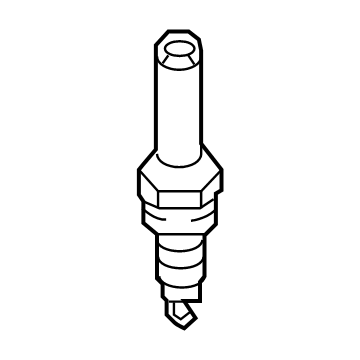

Volkswagen Spark Plug Part Number: 05E-905-626

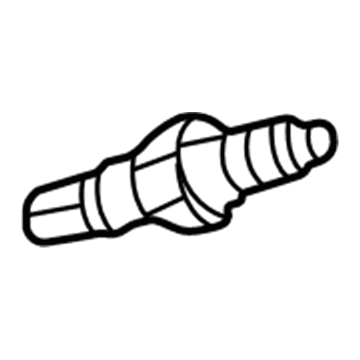

Volkswagen Spark Plug Part Number: 06H-905-601-A

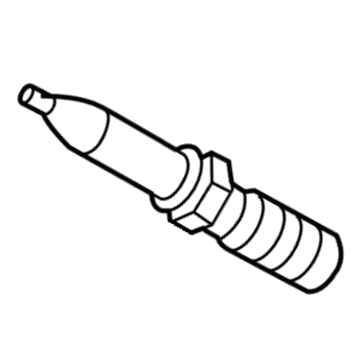

Volkswagen Spark Plug Part Number: 101-000-062-AB

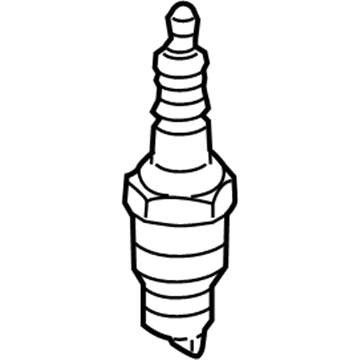

Volkswagen Spark Plug Part Number: 101-000-063-AA

Volkswagen Spark Plug Part Number: 7B0-905-601

Volkswagen Spark Plug Part Number: 05E-905-602-C

Volkswagen Spark Plug Part Number: 101-905-622

Volkswagen Spark Plug Part Number: 04E-905-602-D

Volkswagen Spark Plug Part Number: 03H-905-600-A

Volkswagen Spark Plug Part Number: 06Q-905-601-E

Volkswagen Spark Plug Part Number: 06Q-905-601-F

Volkswagen Spark Plug Part Number: 7B0-905-600-B

Volkswagen Spark Plug Part Number: 06K-905-601-K
