Question 1

What precautions should be taken when disconnecting the battery and removing the upper Timing Chain, Timing Chain Tensioner, Timing Cover and Timing Cover Gasket for 5-cylinder engines on Volkswagen Jetta?

Accepted Answer

In case the battery is removed, a number of systems will be required to be re-learned before they can be used again. The upper timing chain cover is removed by removing the engine cover and air filter housing, the battery and battery tray. Relax the right front wheel bolts, lift the front of the car and place it firmly on jackstands with the wheels blocked on the other end and remove the right front wheel. Secondly, take off the under vehicle splash shield, empty the coolant in the cooling system and take off the coolant reservoir. Disconnect the vacuum hose with the vacuum pump and the coolant hoses with the thermostat housing and withdraw the coolant pipe out of the thermostat housing by lifting the retaining clip and pulling the pipe out. Unweld the engine coolant temperature switch, loosen the thermostat housing with fasteners and then loosen the thermostat housing. Install a work in a diagonal manner, take off the upper timing chain cover with fasteners attached, and pry the end off the cylinder head. To install, remove all sealant from the mating surfaces, install the cover within four minutes of applying a 118-inch (3 mm) bead of RTV sealant, screw the bolts in a diagonal pattern to a required torque, install a new cover oil seal, and test and adjust the time of the valve. Removal of the camshaft chain cover seal: To get it out of the camshaft cover, it is necessary to remove the timing chain cover at first then tear the seal out of the camshaft cover at the back using a socket or a tube and push the new one in place and perform this by putting the cover on a flat surface lest it is damaged. In the case of the camshaft timing chain and tensioner, care should be taken, as the timing system is a bit complicated, and it is better to contact a specialist in case of doubts. To start with, disconnect the upper timing chain cover and valve cover, and lock the crankshaft at TDC with cylinder no. 5 and place the camshaft holding tool. Tensioner the timing chain piston and insert a pin to keep it in the compressed state, and then loosen the exhaust camshaft sprocket and intake camshaft adjuster sprocket. Install the whole tensioner assembly, chain guide and tensioner guide off the dowels on the cylinder head, but do not take out the pin that secures the tensioner piston. Take out the tensioner gasket and strainer, then take out the timing chain of the housing and note the direction the timing chain was turned in case it is required to be reused. To install, loop the camshaft timing chain on the double sprocket, place the chain guide and tensioner guide into place on the cylinder head dowels, move the tensioner strainer into place, and place the tensioner gasket and assembly to the cylinder head dowels, and tighten the fastener to the required specifications. Install the intake camshaft adjuster sprocker and loop the timing chain over sprocker and the exhaust camshaft sprocker and loosely tighten the sprocket mounting insert by hand. Take out the pin of the tensioner and push the piston forward to connect with the chain guide, change the time of the valve, and install it in the same order as the pin was removed.

Question 2

What precautions should be taken when disconnecting the battery and removing the upper Timing Chain, Timing Chain Tensioner, Timing Cover and Timing Cover Gasket for Five-cylinder engines on Volkswagen Rabbit?

Accepted Answer

When the battery has not been slipped out, some of the systems erroneously need to be re-learned before operating correctly. In order to take off the upper timing chain cover, one needs to take off the engine cover then the battery and battery tray. Unscrew the right front wheel bolts, raise the front of the car and prop it firmly on jackstands, blocking the wheels at the other end and then remove the right front wheel. Secondly, you will have to take off the under-vehicle splash shield, drain the coolant in the cooling system, and take off the coolant reservoir. Unscrew the vacuum hose to the vacuum pump and the hoses to the thermostat to the house, and take out the coolant pipe through the thermostat house pulling the retaining clip upwards, and pulling the pipe out. Disconnect the engine coolant temperature switch, take off the thermostat housing that has fasteners and take off the thermostat housing. In a diagonal manner, loosen the top timing chain cover that is still attached and loosen the cover of the cylinder head delicately. To install, follow the steps in reverse, cleaning the mating surfaces of all sealant, then place the engine cover in place within four minutes of applying a 1/8-inch bead of RTV sealant, then ensuring the bolts are tightened in a diagonal fashion up to the required torque, place another cover oil seal, and then check and adjust the valve timing, as needed. Removal To take off the camshaft chain cover seal, remove the timing chain cover, then push the seal out of the rear side of the camshaft cover using a socket or tube and then press the new seal in until it snaps into place, do not overstep the cover as it could be damaged. In the case of the camshaft timing chain and tensioner, it should be approached with a lot of care because the timing system is a complicated affair and one should seek the advice of an expert in case of doubt. Start by taking off the upper timing chain cover and valve cover, ensuring the crankshaft has been locked at TDC at cylinder no. 5 and put in the camshaft holding tool. Tighten the timing chain tensioner piston with a pin and take out the exhaust camshaft sprocket and intake camshaft adjuster sprocket fasteners, and pull the sprockets off the camshafts. Loosen tensioner mounting fastener and slide the tensioner assembly, chain guide and tensioner guide down the cylinder head dowels, being careful not to lift the pin that attaches the tensioner piston in the compressed position. Take off the tensioner gasket and strainer, the tensioner timing chain out of the housing and make a note of the original line of rotation should it be required again. To install, wrap the camshaft timing chain on to the two sprockets, clamp the chain, apply the chain guide and tensioner guide on the cylinder head dowels. Install the tensioner gasket and assembly along with tensioner strainer, attach the fastener to the required torque. Install the sprocker of the camshaft intake adjuster and then wrap the timing chain on the sprocker and the exhaust camshaft sprocker and tighten the fastener by hand. Take the pin out of the tensioner and open the piston to allow the chain guide to fit in, set the valve timing and finish the installation by reversing the actions that you have done.

Genuine Volkswagen Timing Cover Gasket

25 Timing Cover Gaskets found

Volkswagen Rear Main Seal Part Number: 059-103-051-K

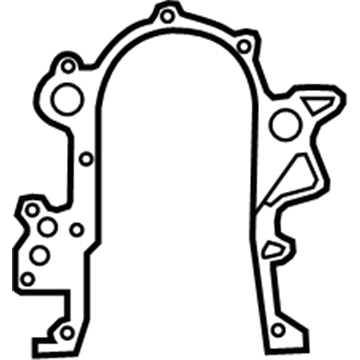

Volkswagen Timing Cover Gasket Part Number: 049-109-188-B

Volkswagen Front Cover Gasket Part Number: 7B0-109-287

Volkswagen Front Cover Seal Part Number: 06Q-103-583-A

Volkswagen Front Cover Gasket Part Number: 06Q-103-483-C

Volkswagen Front Crank Seal Part Number: 06L-103-085-B

Volkswagen Valve Cover Gasket Part Number: D-176-501-A1

Volkswagen Timing Cover Gasket Part Number: 06H-103-483-C

Volkswagen Front Cover Gasket Part Number: 06Q-103-483-A

Volkswagen Timing Cover Gasket Part Number: 070-109-293-B

Volkswagen Cover Gasket Part Number: 07K-109-345

Volkswagen Oil Cooler Gasket Part Number: 038-117-070

Volkswagen Timing Cover Seal Part Number: 06H-103-483-D

Volkswagen Front Cover Gasket Part Number: 06K-103-483

Volkswagen Timing Cover Seal Part Number: 06L-103-583-C

Volkswagen Timing Cover Gasket Part Number: 06L-103-483-A

Volkswagen Timing Cover Seal Part Number: 7B0-115-427

Volkswagen Timing Cover Gasket Part Number: 7B0-109-265

Volkswagen Front Crank Seal Part Number: 7B0-109-269

Volkswagen Front Cover Gasket Part Number: 069-109-140

Volkswagen Timing Cover Gasket
