Question 1

How to replace a power steering pump on Volkswagen Jetta?

Accepted Answer

lift the front of the car and hold it on jackstands. Take out the lower splash shield underneath the engine. Unscrew the bolts of the power steering pump pulley, and unscrew the drivebelt. Clamp the supply and the return hose with the brake hose clamps close to the power steering fluid reservoir to prevent the loss of the fluid during the further work. Clean off the surrounding area around the pressure and return line fittings of the power steering. Detach and take off the pressure line on the pump, being ready to receive a spillage of fluids, and put a container under the pipe, as you unscrew the line. Insert the end of the line and the steering pump orifice in order to reduce fluid leak and prevent dirt to enter the hydraulic system. Unclamp the clamp and remove the hose of the fluid supply at the back of the power steering pump and forcibly insert the end of the hose and close the aperture of the pump fluid to avoid contamination. Take out the pump pulley bolt and pulley and then take out the pump mounting fasteners and pull off the pump out of the bracket. In case the power steering pump has a defect, it should be refreshed since it is a sealed part, which is not subject to an overhaul. In case a new pump is to be installed, it should be filled with fluid first to get sufficient lubrication during its initial days of operation otherwise there is a likelihood of noisy operation and may even result in the premature failure of the pump. Pour the required grade of hydraulic fluid in the fluid supply port on the pump and at the same time, turn the pump pulley. When the fluid leaves the pressure port it is primed and is ready to be used. Install the pump and attach mounting bolts and screw them until they are tightened to the required value. Attach the pulley to the pump and fasten the mounting bolts of the pulley and when attaching make sure it is tight. Attach the pressure line to the pump and screw the line in the pump carefully making sure that it has been properly laid and then screw it tight and tight to the required torque. Attach the supply hose again to the pump and make certain the retaining clip is in place and then take the hose clamps off to reduce the amount of fluid that leaks out. Install the drivebelt of a power steering pump and screw the fasteners of the pulley pump to the required torque. Fit the under-vehicle splash shield, and reconnect the negative battery cable. Add hydraulic system to the top and then bleed the system.

Question 2

What steps should be followed to replace the power steering pump on Volkswagen Passat?

Accepted Answer

The models also have an anti-theft radio installed and as such you must remember to have the activation code before disconnecting the battery. The disconnection of the battery may cause problems in driveability that may need to be fixed with the help of a scan tool, and they may also activate warning lights on the instrument panel, which may need to be recessed using a scan tool. The majority of the popular scan tools do not have the features to do these tasks and this would involve going to one of the dealer service departments or a well equipped repair facility in a post-service work pay. The first step is to remove the cable, which is connected to the negative side of the battery, and then disconnect the ribbed drivebelt. In case of four-cylinder models, it is necessary to raise the front of the car and place it firmly on jackstands, remove the under-vehicle splash shield and the front bumper then work out the radiator support panel to the service position. Then unscrew the water pump pulley and drivebelt, clamp the supply and return hose around the power steering fluid reservoir to stop the maximum possible loss of fluid, and clean around the power steering pressure and return line fittings. Unscrew the banjo bolt to disconnect the pressure line with the pump, and be ready in case of fluid spillage, and retrieve the sealing washers, discarding the old ones. To avoid leaking and contamination of the fluid, insert an end of the line and steering pump orifice. Loosen the clamp to needle the supply hose of fluid to the rear of the power steering pump, then loosen the mounting bolts of the pump in order to lose the pump to its mounting bracket. In the event that the power steering pump is malfunctioning, then it needs to be change since it is a sealed unit. When a new pump is installed, it should be filled with fluid to provide adequate lubrication when turning the pump pulley to allow the specified grade of hydraulic fluid to pass through the fluid supply port until it comes out of the pressure port. Install and attach the mounting bolts after arranging the pump in place, attach the pressure line with new sealing washers and place the supply hose in the clip. Install the water pump pulley and drivebelt, radiator support panel, and the front bumper, and install the under-vehicle splash shield, and reassemble the negative battery cable. Lastly, fill the hydraulic system and bleed the system. In V6s, the steps include the following: take off the top engine cover, label the location of the spark plug wires, and take off the ignition coil set. To remove the tension on the pulley to allow it not to revolve, a strap or chain wrench is used to detach the pulley with the pump, and connect the pressure line and fluid supply hose as mentioned before. Disassemble the pump and bracket by removing pump bracket mounting bolts so as to remove the pump and the bracket off of the engine, and part the pump apart with the bracket. Repeat the priming and installation process of the new pump, re-connection of the pressure line and supply hose and the re-fitment of the pulley, ignition coil assembly and engine top cover. Refit the negative battery cable, fill up the hydraulic system and bleed the system.

Genuine Volkswagen Power Steering Pump

36 Power Steering Pumps found

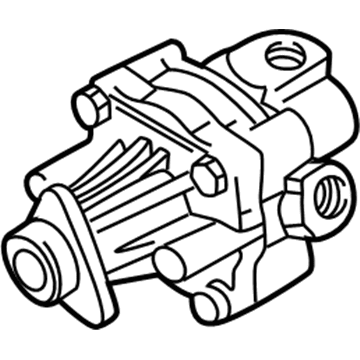

Volkswagen Power Steering Pump Part Number: 037-145-157-BX

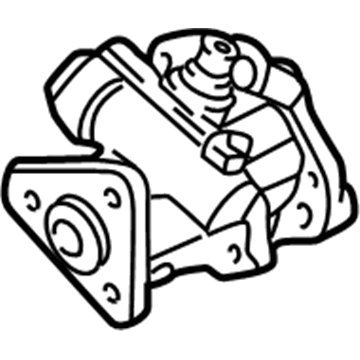

Volkswagen Power Steering Pump Part Number: 8D0-145-156-K

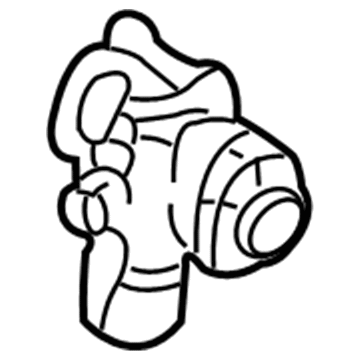

Volkswagen Power Steering Pump Part Number: 8D0-145-156-T

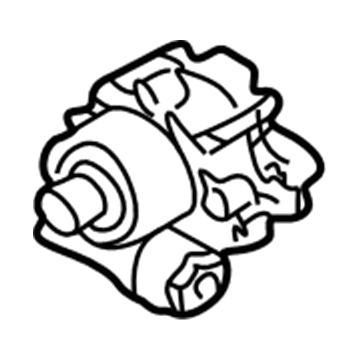

Volkswagen Power Steering Pump Part Number: 7B0-422-154-A

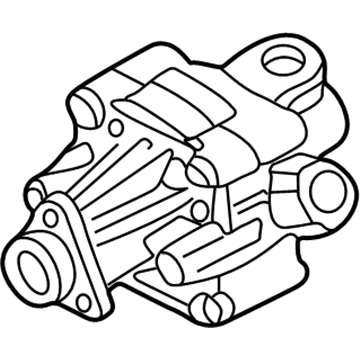

Volkswagen Power Steering Pump Part Number: 1J0-422-154-H

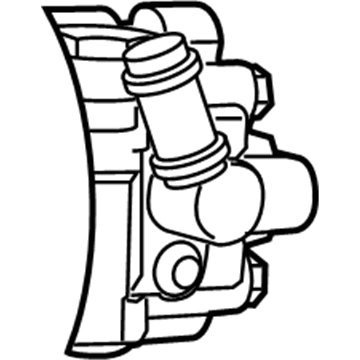

Volkswagen Power Steering Pump Part Number: 028-145-157-FX

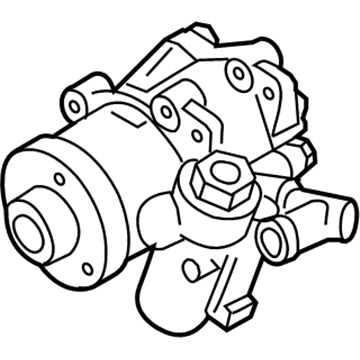

Volkswagen Power Steering Pump Part Number: 3B0-422-154-H

Volkswagen Power Steering Pump Part Number: 027-145-157

Volkswagen Power Steering Pump Part Number: 044-145-157-AX

Volkswagen Power Steering Pump Part Number: 6K0-422-154

Volkswagen Power Steering Pump Part Number: 8D0-145-156-FX

Volkswagen Power Steering Pump Part Number: 7D0-422-154-X

Volkswagen Power Steering Pump Part Number: 1J0-422-152-A

Volkswagen Power Steering Pump Part Number: 3B7-422-154-A

Volkswagen Power Steering Pump Part Number: 8D0-145-156-KX

Volkswagen Power Steering Pump Part Number: 8D0-145-156-TX

Volkswagen Power Steering Pump Part Number: 6N0-145-157-X

Volkswagen Power Steering Pump Part Number: 2K0-422-154-A

Volkswagen Power Steering Pump Part Number: 1J0-422-152-K

Volkswagen Power Steering Pump Part Number: 1J0-422-152-M

Volkswagen Power Steering Pump

Volkswagen Power Steering Pump Parts and Q&A
