Question 1

What precautions should be taken when disconnecting the battery and removing the airbag module from the steering wheel on Volkswagen Jetta?

Accepted Answer

When the battery is changed, a number of systems would have to be re-learned before they can operate correctly. Start by pulling up the car with the wheels facing straight and unhooking the cable of the negative battery contact. In the case of 2014 and older models, the steering wheel should be in its lowest position and pushed out to the utmost length and turning the wheel counter clockwise about 90 degrees. Find the opening, insert a small flat-bladed screwdriver in the opening and twist the screwdriver to the left to loosen the retainer. Turn the steering wheel 180 clockwise then repeat the steps to unlock the left side retainer by turning the steering wheel 180 clockwise and then proceed to carefully remove the airbag module off the steering wheel and disconnect the electrical connectors and then remove the airbag. With 2015 and subsequent models, turn the steering wheel 90 degrees off-center, counterclockwise and insert a 5 or 6 mm Allen wrench or punch into the access hole and press the tool parallel to the steering column and slightly lifting to release the internal spring. You will have to repeat the process in 180 degrees then you will have to very carefully peel off the airbag lying in the steering wheel as a way of disconnecting the electrical connectors and removing it. In the event that steering wheel has never been removed, there might be a layer of plastic over the tool access hole. Place the module in a safe place with the airbag side upwards. Then, take out the steering wheel bolt with a 12 mm, 12-point spline-drive bit, and note the steering wheel location with regard to the steering shaft in the event there are no alignment marks. Unscrew the steering wheel off the shaft, observing how any electrical wire harnesses are routed and, where necessary, tap it towards the middle or twist it as one pulls it up. Apply a bit of tape over the clock-spring to ensure that it does not turn. To install, screw the wheel onto the steering shaft, aligning the index marks and connecting any wiring harnesses and screw a new steering wheel bolt and tighten it to the appropriate torque. Install the electrical contacts of the horn and airbag module and attach the airbag module to the steering wheel and fix it.

Question 2

What precautions should be taken before disconnecting the battery and removing the steering wheel on Volkswagen Passat?

Accepted Answer

These models have anti-theft radio installed therefore before you disconnect the battery make sure to have the activation code. Removing the battery can cause the car to become driveable with a scan tool needed to fix the issues, and will also result in warning lights appearing on the instrument panel, and therefore a scan tool will be required to put the light off. A majority of the public scan tools are incapable of such tasks, and may need a visit to a dealer service department or a well-equipped repair facility. To detach the steering wheel, one has to park the vehicle with straight wheels and disconnect the negative battery cable. Deactivate airbag system and then on the 1996 or 1997 A4s, two Torx screws are removed to pull off the airbag module attached to the steering wheel. Other models: Rotate the steering wheel 90 degrees to reach the spring clip hole, then with a screwdriver, unlock the pins and then unplug the airbag module electrical connector. Put the module aside (airbag side up), place the steering wheel at the center and take off the steering wheel bolt, and the three-spoke wheels on Passats will have a hex bolt whereas four spoke wheels can have a hex-head or a spline drive bolt. Once the steering wheel is removed, mark the position of the steering wheel to the shaft in case it is required and tap near the center or twist the steering wheel and pull upwards. Installation Before you install the steering wheel, make sure the airbag clock spring is centered, otherwise, you take off the steering column covers, unplug the electrical connector, and adjust the clock spring by turning the hub until it stops and then rotate the hub until you reach the center. Install the clock spring so that it is firmly in place, then so that the steering wheel is aligned with the marks and the steering wheel bolt is tightened to the required torque and a mark made indicating how many times that particular steering wheel bolt has been reused. Lastly, insert airbag and horn electrical connection parts, put in ground leads and install the airbag module on the steering wheel, and fix it accordingly depending on the model.

Genuine Volkswagen Steering Wheel

257 Steering Wheels found

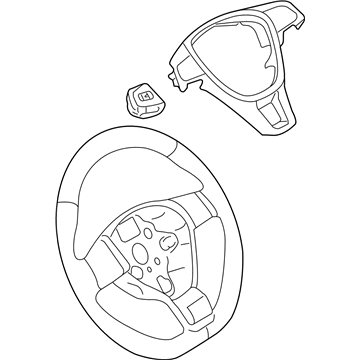

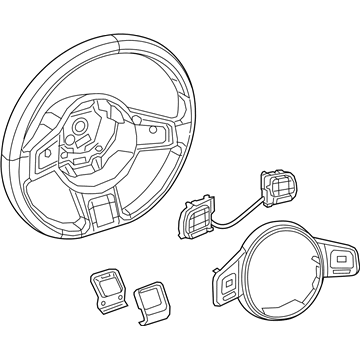

Volkswagen Steering Wheel Part Number: 3QF-419-091-G-81U

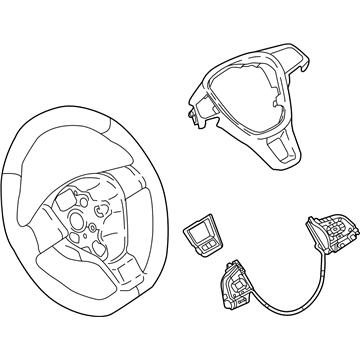

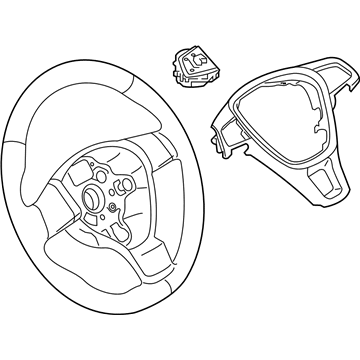

Volkswagen Steering Wheel Part Number: 5NN-419-091-BB-81U

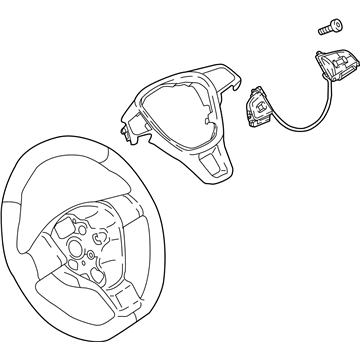

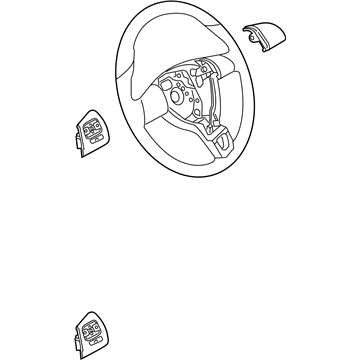

Volkswagen Steering Wheel Part Number: 3QF-419-091-J-E74

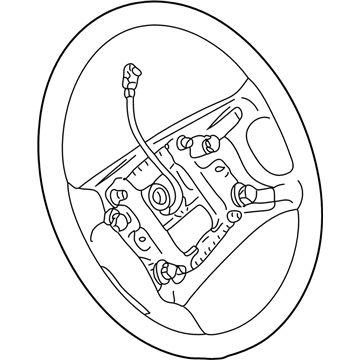

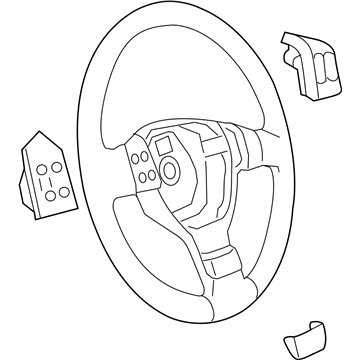

Volkswagen Steering Wheel Part Number: 3QF-419-091-K-E74

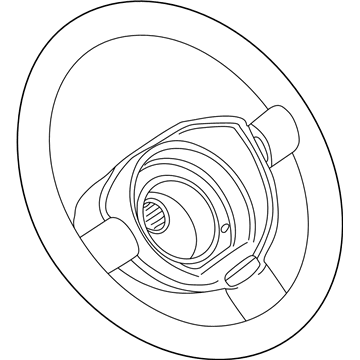

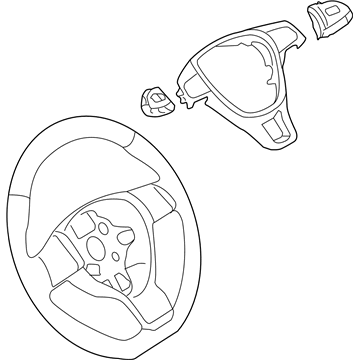

Volkswagen Steering Wheel Part Number: 1HM-419-091-B-01C

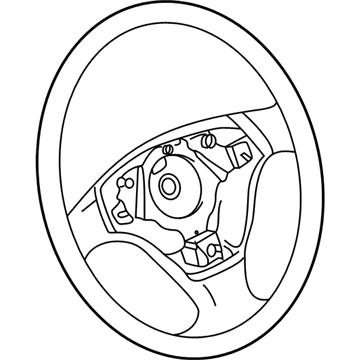

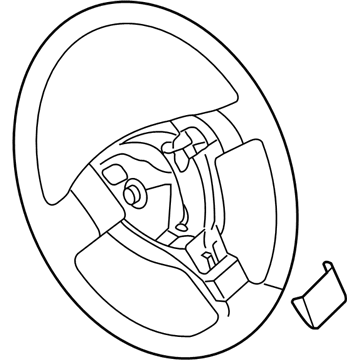

Volkswagen Steering Wheel Part Number: 561-419-091-C-81U

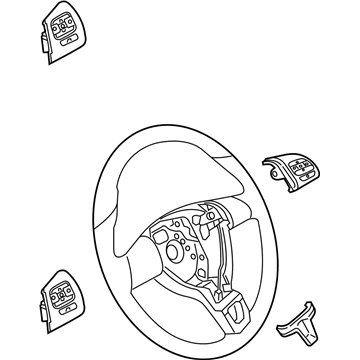

Volkswagen Steering Wheel Part Number: 3QF-419-091-M-E74

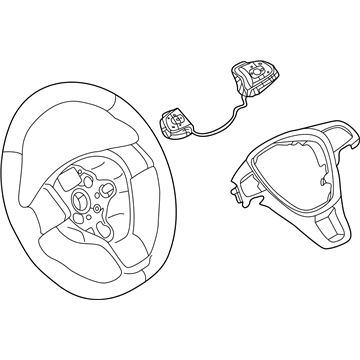

Volkswagen Steering Wheel Part Number: 561-419-091-J-E74

Volkswagen Steering Wheel Part Number: 1C0-419-091-P-8PT

Volkswagen Steering Wheel Part Number: 17A-419-091-F-E74

Volkswagen Steering Wheel Part Number: 561-419-091-81U

Volkswagen Steering Wheel Part Number: 561-419-091-F-E74

Volkswagen Steering Wheel Part Number: 5K0-419-091-BT-81U

Volkswagen Steering Wheel Part Number: 5C0-419-091-EK-041

Volkswagen Steering Wheel Part Number: 5C0-419-091-EJ-E74

Volkswagen Steering Wheel Part Number: 5GM-419-091-AE-E74

Volkswagen Steering Wheel Part Number: 1K0-419-091-EQ-USZ

Volkswagen Steering Wheel Part Number: 5C0-419-091-EH-E74

Volkswagen Steering Wheel Part Number: 5NN-419-091-BR-CPU

Volkswagen Steering Wheel Part Number: 1HM-419-091-N-01C
