How to remove and install the shock absorber, wheel trim or hub cap, strut assembly, and related components on Volkswagen Jetta?

To remove the wheel trim or hub cap, loosen the driveaxle or hub bolt with a 90-degree turn and the wheel bolts while the vehicle is on its wheels. Chock the rear wheels, apply the parking brake, raise the front of the vehicle, and support it securely on jackstands before removing the wheel and driveaxle or hub bolt. Disconnect the stabilizer bar link from the strut, then remove the fastener and bracket holding the brake hose and ABS sensor harness connector to the strut. Remove the strut-to-knuckle nut and knock the bolt out with a hammer and punch, then remove the balljoint-to-control arm nuts and separate the control arm from the balljoint. If equipped, disconnect the front level control sensor arm from the control arm. Separate the strut from the steering knuckle while supporting the driveaxle, using penetrating oil or water to help if the shock tube is frozen in the steering knuckle. Support the driveaxle to prevent damage to the inner CV joint. Place a floor jack under the steering knuckle to support it without lifting the vehicle. Remove the cowl panel, then support the strut and spring assembly with one hand while removing the three strut-to-shock tower fasteners and guiding the strut assembly from the fenderwell. Inspect the strut body for leaks, dents, or cracks, and check the coil spring for chips or cracks in the coating, as well as the spring seat for deterioration. If any issues are found, proceed to disassemble the strut. For installation, it may be easier with an assistant due to the weight of the strut assembly. Guide the strut assembly into the fenderwell and install the mounting bolts, ensuring one of the arrows on the strut bearing retainer points towards the front of the car. Slide the strut tube into the steering knuckle until fully seated, then insert the bolt with the threaded end facing forward and tighten the nut. Reattach the brake hose and ABS speed sensor wiring harness bracket to the strut, install the driveaxle into the hub splines with a new driveaxle or hub bolt, and tighten securely. Connect the control arm to the balljoint and tighten the fasteners, then tighten the three upper mounting bolts. Install the wheel, lower the vehicle, and tighten the driveaxle or hub bolt and wheel bolts. Finally, reinstall the cowl panel.

How to replace the rear shock absorbers on Volkswagen Passat?

Unscrew the rear wheel bolts and put chocks on the front wheels to ensure the vehicle does not roll, and then make the rear elevated and put on jackstands to hold it safely and then remove the rear wheel. Place the floor jack under the rear of the trailing arm and then remove lower mounting bolt/nut of the shock absorber. The second step is to remove shock absorber upper mounting bolts and shock absorber itself. Unscrew the damper rod nut and grab the damper rod with a second wrench to ensure that it does not turn. Take off the top mount, bump stop, boot, and cap of the damper rod and then add the cap, boot, bump stop, and upper mount to the new shock absorber. Fit a new nut on the damper shaft and screw it on to the required torque. Install the shock absorber and install the upper mounting bolts and a new lower mounting bolt and nut, however do not tighten the lower mounting bolt/nut. Install the upper mounting bolts to the correct level of tightening and then raise the rear axle to mimic normal ride height and tighten the lower mounting bolt/nut to the correct level of tightening. Repeat on the other rear shock absorber after which then install the wheels and lower the vehicle making sure that the wheel bolts are tightened to the required torque.

Genuine Volkswagen Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

224 Shock Absorbers found

View related parts

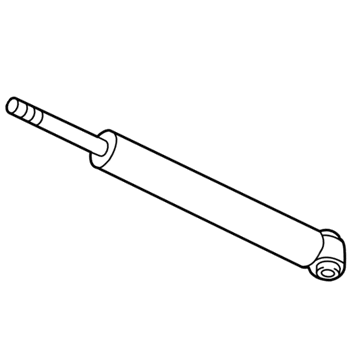

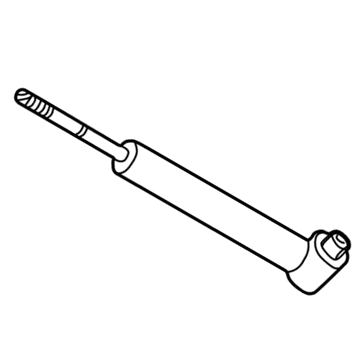

Volkswagen Shock Part Number: 5Q0-513-029-JP
$55.68 MSRP: $77.34
You Save: $21.66 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock Absorber
Fits the following Volkswagen Models:
- e-Golf | 2015-2019 | Limited Edition, SE, SEL Premium | BATTERY EV (EV/BEV)
View related parts

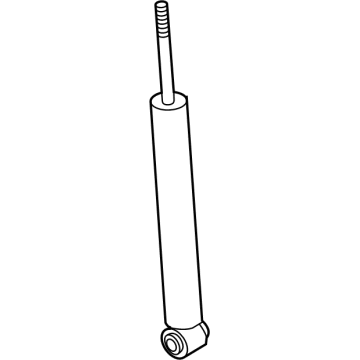

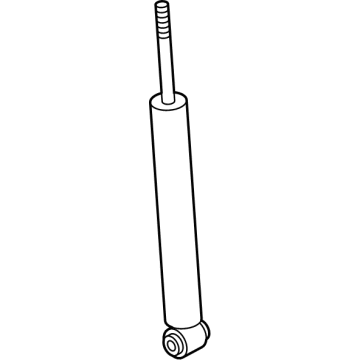

Volkswagen Strut Part Number: 305-513-029-14
$51.68 MSRP: $71.79
You Save: $20.11 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Strut
Fits the following Volkswagen Models:
- Fox | 1987-1993 | Base, GL, GL Sport | 4 Cyl 1.8 L GAS
View related parts

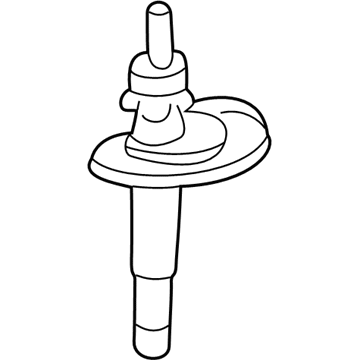

Volkswagen Strut Part Number: 1HM-513-031-F
$53.28 MSRP: $74.00
You Save: $20.72 (28%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Strut
- Replaces: 1H0-513-031, 176-513-033-A
Fits the following Volkswagen Models:
- Golf | 1985-1992 | Base, GL, GT, GTI, GTI 16-Valve, GTI 8-Valve | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
- Jetta | 1985-1992 | Base, Carat, GL, GLI, GLI 16-Valve, Wolfsburg Edition | 4 Cyl 1.6 L DIESEL, 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
View related parts

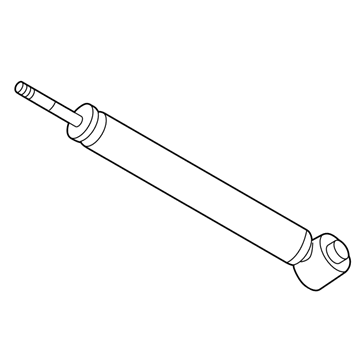

Volkswagen Strut Part Number: 1HM-513-031-E
$57.24 MSRP: $79.50
You Save: $22.26 (28%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock Absorber
- Replaces: 1HM-513-031-B
Fits the following Volkswagen Models:
- Cabrio | 1995-2002 | Base, GL, GLS, GLX, High Line | 4 Cyl 2.0 L GAS
- Golf | 1993-1999 | Base, Celebration Edition, City, CL, GL, GTI, Jazz, K2, Limited Edition, Sport, Trek, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS
- Jetta | 1993-1999 | Base, Celebration Edition, City, GL, GLS, GT, Jazz, K2, Limited Edition, TDI, Trek, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS
View More
View related parts

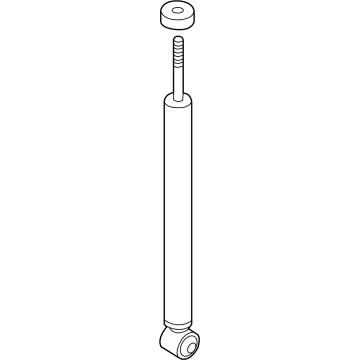

Volkswagen Shock Part Number: 5C0-513-029-AG
$66.83 MSRP: $93.59
You Save: $26.76 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
Fits the following Volkswagen Models:
- Beetle | 2018-2019 | Coast, Final Edition SE, Final Edition SEL, S, SE | 4 Cyl 2.0 L GAS
View related parts

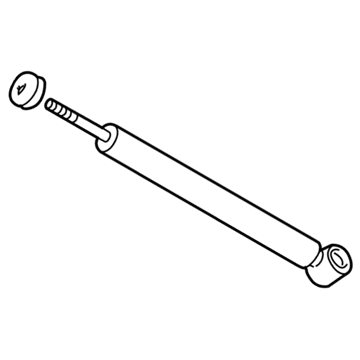

Volkswagen Strut Part Number: 1J0-413-031-BH
$49.94 MSRP: $69.36
You Save: $19.42 (28%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
- Replaces: 1J0-413-031-AE, 1J0-413-031-P
Fits the following Volkswagen Models:
- Golf | 1999-2006 | GL, GL TDI, GLS, GLS TDI, GTI, GTI 1.8T, GTI 20th Anniversary, GTI 337, GTI GLS, GTI GLX, GTI VR6, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- Jetta | 1999-2005 | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts

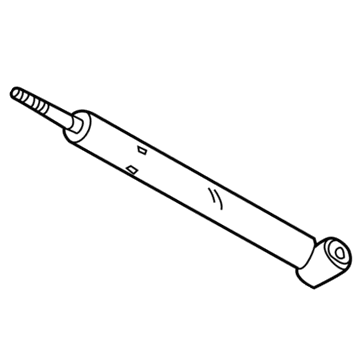

Volkswagen Shock Part Number: 5C0-513-029-AA
$83.95 MSRP: $117.59
You Save: $33.64 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
Fits the following Volkswagen Models:
- Beetle | 2018, 2012-2013 | Base, Dune, R-Line, TDI, Turbo | 4 Cyl 2.0 L DIESEL, 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View related parts

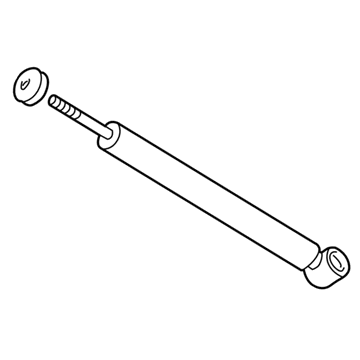

Volkswagen Shock Part Number: 5Q0-513-029-HG
$78.54 MSRP: $110.00
You Save: $31.46 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
Fits the following Volkswagen Models:
- e-Golf | 2015-2016 | Limited Edition, SE, SEL Premium | BATTERY EV (EV/BEV)
View related parts
Volkswagen Shock Part Number: 1J0-513-025-BH
$83.30 MSRP: $116.67
You Save: $33.37 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
- Replaces: 1J0-513-025-DD, 1J0-513-025-BB
Fits the following Volkswagen Models:
- Beetle | 1998-2005 | Base, GL, GLS, GLS TDI, GLX, Sport, TDI, Turbo S | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS
- Golf | 1999-2006 | GL, GL TDI, GLS, GLS TDI, GTI, GTI 1.8T, GTI 20th Anniversary, GTI 337, GTI GLS, GTI GLX, GTI VR6, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- Jetta | 1999-2005 | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View More
View related parts
Volkswagen Strut Part Number: 1H0-513-031-D
$84.97 MSRP: $119.00
You Save: $34.03 (29%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Strut
- Replaces: 176-513-033-C, 191-513-033-D
Fits the following Volkswagen Models:
- Golf | 1996-1999, 1985-1992 | GL, GTI, GTI 16-Valve, GTI 8-Valve, GTI VR6, Jazz, K2, Trek, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- Jetta | 1985-1992 | Carat, GLI, GLI 16-Valve | 4 Cyl 1.8 L GAS, 4 Cyl 2.0 L GAS
View related parts
Volkswagen Shock Part Number: 1J0-513-025-BG
$85.80 MSRP: $120.17
You Save: $34.37 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock Absorber
- Replaces: 1J0-513-025-DH, 1J0-513-025-BF, 1J0-513-025-BP
Fits the following Volkswagen Models:
- Golf | 1999-2006 | GL, GL TDI, GLS, GLS TDI, GTI, GTI 1.8T, GTI 20th Anniversary, GTI 337, GTI GLS, GTI GLX, GTI VR6, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
- Jetta | 1999-2005 | GL, GL TDI, GLI, GLS, GLS TDI, GLX, TDI, Wolfsburg Edition | 4 Cyl 1.8 L GAS, 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS, 6 Cyl 2.8 L GAS
View related parts
Volkswagen Strut Part Number: 191-513-033-J
$87.11 MSRP: $122.00
You Save: $34.89 (29%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Strut
Fits the following Volkswagen Models:
- Corrado | 1990-1992 | G60 | 4 Cyl 1.8 L GAS
View related parts
Volkswagen Shock Part Number: 533-513-033
$87.81 MSRP: $122.98
You Save: $35.17 (29%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Shock
Fits the following Volkswagen Models:
- Scirocco | 1984-1988 | 16-Valve, Base | 4 Cyl 1.8 L GAS
View related parts
Volkswagen Shock Part Number: 1EK-513-049-E
$98.39 MSRP: $137.80
You Save: $39.41 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
Fits the following Volkswagen Models:
- ID.4 | 2023 | Pro, Pro S, Pro S Plus, S, Standard | BATTERY EV (EV/BEV)
View related parts
Volkswagen Strut Part Number: 357-513-031-S
$92.82 MSRP: $130.00
You Save: $37.18 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber; Strut
- Replaces: 357-513-031
Fits the following Volkswagen Models:
- Passat | 1995-1997, 1990-1993 | CL, GL, GLS, TDI | 4 Cyl 1.9 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Volkswagen Shock Part Number: 5QM-513-049-AD
$104.37 MSRP: $146.18
You Save: $41.81 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
Fits the following Volkswagen Models:
- Taos | 2022-2024 | S, SE, SEL | 4 Cyl 1.5 L GAS
View related parts
Volkswagen Shock Absorber Part Number: 561-513-049-C
$96.39 MSRP: $135.00
You Save: $38.61 (29%)
Ships in 1-2 Business Days
ADD TO CART
Fits the following Volkswagen Models:
- Passat | 2012 | S, SE, SEL, SEL Premium, TDI SE, TDI SEL | 4 Cyl 2.0 L DIESEL, 5 Cyl 2.5 L GAS, 6 Cyl 3.6 L GAS
View related parts
Volkswagen Shock Part Number: 5C0-513-025-R
$98.53 MSRP: $138.00
You Save: $39.47 (29%)
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
Fits the following Volkswagen Models:
- Beetle | 2012 | Base, Turbo | 4 Cyl 2.0 L GAS, 5 Cyl 2.5 L GAS
View related parts
Volkswagen Shock Part Number: 5QM-513-029-AL
$109.63 MSRP: $153.55
You Save: $43.92 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
Fits the following Volkswagen Models:
- Jetta | 2019 | GLI 35th Anniversary Edition, GLI Autobahn, GLI S | 4 Cyl 2.0 L GAS
View related parts
Volkswagen Shock Part Number: 1EA-513-049-AN
$110.19 MSRP: $154.34
You Save: $44.15 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Shock Absorber
Fits the following Volkswagen Models:
- ID.4 | 2021-2022 | 1st Edition, Pro, Pro S | BATTERY EV (EV/BEV)

| Page 1 of 12 |Next >

1-20 of 224 Results

Volkswagen Shock Absorber

A total system failure could result from a malfunctioning Volkswagen Shock Absorber, reducing driving comfort and posing a danger. It is for this reason that you should conduct regular inspections and replace such components in good time to enable your car to run smoothly and safely. OEM (Original Equipment Manufacturer) Volkswagen Shock Absorbers are perfect for motorists because they are the best quality parts produced as per the manufacturer's specifications; hence, they perform well and are reliable too, thus helping to retain the car's initial functionality as well as safety features. At VWPartsGiant.com, our genuine Volkswagen Shock Absorber supply indicates how much we care about the health of your vehicle. Additionally, our stock is vast, so every product will be easily accessible to you for finding and swapping without fear of making mistakes. With our user-friendly online catalog, it takes no time to identify the right spare part. Therefore, convenience accompanies servicing or maintaining a motorcar. You can rely on our OEM Volkswagen Shock Absorber to sustain the performance of your automobile.

Volkswagen Shock Absorber Parts and Q&A

Shock
1K0-513-029-HK
Q: How to remove and install the shock absorber, wheel trim or hub cap, strut assembly, and related components on Volkswagen Jetta?
A:
To remove the wheel trim or hub cap, loosen the driveaxle or hub bolt with a 90-degree turn and the wheel bolts while the vehicle is on its wheels. Chock the rear wheels, apply the parking brake, raise the front of the vehicle, and support it securely on jackstands before removing the wheel and driveaxle or hub bolt. Disconnect the stabilizer bar link from the strut, then remove the fastener and bracket holding the brake hose and ABS sensor harness connector to the strut. Remove the strut-to-knuckle nut and knock the bolt out with a hammer and punch, then remove the balljoint-to-control arm nuts and separate the control arm from the balljoint. If equipped, disconnect the front level control sensor arm from the control arm. Separate the strut from the steering knuckle while supporting the driveaxle, using penetrating oil or water to help if the shock tube is frozen in the steering knuckle. Support the driveaxle to prevent damage to the inner CV joint. Place a floor jack under the steering knuckle to support it without lifting the vehicle. Remove the cowl panel, then support the strut and spring assembly with one hand while removing the three strut-to-shock tower fasteners and guiding the strut assembly from the fenderwell. Inspect the strut body for leaks, dents, or cracks, and check the coil spring for chips or cracks in the coating, as well as the spring seat for deterioration. If any issues are found, proceed to disassemble the strut. For installation, it may be easier with an assistant due to the weight of the strut assembly. Guide the strut assembly into the fenderwell and install the mounting bolts, ensuring one of the arrows on the strut bearing retainer points towards the front of the car. Slide the strut tube into the steering knuckle until fully seated, then insert the bolt with the threaded end facing forward and tighten the nut. Reattach the brake hose and ABS speed sensor wiring harness bracket to the strut, install the driveaxle into the hub splines with a new driveaxle or hub bolt, and tighten securely. Connect the control arm to the balljoint and tighten the fasteners, then tighten the three upper mounting bolts. Install the wheel, lower the vehicle, and tighten the driveaxle or hub bolt and wheel bolts. Finally, reinstall the cowl panel.
Shock
3B0-513-031-P
Q: How to replace the rear shock absorbers on Volkswagen Passat?
A:
Unscrew the rear wheel bolts and put chocks on the front wheels to ensure the vehicle does not roll, and then make the rear elevated and put on jackstands to hold it safely and then remove the rear wheel. Place the floor jack under the rear of the trailing arm and then remove lower mounting bolt/nut of the shock absorber. The second step is to remove shock absorber upper mounting bolts and shock absorber itself. Unscrew the damper rod nut and grab the damper rod with a second wrench to ensure that it does not turn. Take off the top mount, bump stop, boot, and cap of the damper rod and then add the cap, boot, bump stop, and upper mount to the new shock absorber. Fit a new nut on the damper shaft and screw it on to the required torque. Install the shock absorber and install the upper mounting bolts and a new lower mounting bolt and nut, however do not tighten the lower mounting bolt/nut. Install the upper mounting bolts to the correct level of tightening and then raise the rear axle to mimic normal ride height and tighten the lower mounting bolt/nut to the correct level of tightening. Repeat on the other rear shock absorber after which then install the wheels and lower the vehicle making sure that the wheel bolts are tightened to the required torque.
